Our top-of-the-line system, the Airtech Executive Honda Civic Air Suspension kit includes all of the benefits of our Pro Plus System but adds 4 height sensors that mount to each corner of the car for load leveling based on actual ride height. These sensors automatically adjust your ride height while driving to keep the car level no matter what load the vehicle carries. In addition, Executive kits feature independent control of each individual air bag with a remote that can be charged with either the included car charger or any standard mini USB.
No switches or gauges are needed with this kit and no complex wiring is involved. Instead, the kit is operated off a single OLED color screen remote control that displays air tank and air bag pressure at all four corners. With 4 memory settings for air bag pressure and height preferences, Airtech Executive makes it easy to adjust your ride height on the fly.
The system comes standard with 4 high quality air struts, 4 height sensors that mount to each corner of the car, a Viair 444c compressor which can be raised from the lowest setting to max height in as little as 2-5* seconds, an OLED Color screen remote, a standard 4 button back up remote control, and a polished lightweight 5-gallon air tank.
The Ksport Airtech Executive Honda Civic Air Suspension system is designed for easy bolt on-installation with no modifications to OEM shock absorbers or OEM top mounts required, making it the perfect choice for those who want a complete bare bones direct bolt in air suspension system. All Hoses, wiring, and installation manuals are included with Airtech Pro Plus Air Suspension.
5 Gallon Lightweight Polished Air Tank with Carpeted Mounting Board
A polished and lightweight 5-gallon air tank is included with the Airtech Executive and Airtech Pro Plus Air Suspension kits.
Viair 444c Air Compressor
Chosen for reliability and performance, the Airtech Executive Air Suspension kit comes with a Viair 444c Compressor.
No Switches or Gauges Required
No switches or gauges are needed with this kit and no complex wiring is involved. Instead, the kit is operated off a single OLED color screen remote control that displays air tank and air bag pressure at all four corners.
The Airtech Executive control unit offers as simple an installation as possible. Simply run your air lines to the box and connect 4 wires to our quick disconnect plug, wire up the compressors and relay and you’re done.
OLED Remote Control
OLED color screen wireless remote that displays air tank and air bag pressure comes standard with the Executive kit. OLED remote can be charged with either a micro usb or the included car charger. 4 button back up remote is also included.
Wide Range of Height Adjustability
The Airtech Executive Air Suspension System offers height adjustment ranging 0 to 120/200mm depending on the vehicle.
High Pressure Air Bags
Air bags are engineered and designed to match your vehicle. Depending on the type of OEM suspension your vehicle has, sleeve type and double bellow type bags are available. Air pressure directly corresponds with how stiff or soft your car rides – higher psi results in a stiffer ride while lower psi results in a softer ride.
High Performance Shock Absorbers
All Ksport Air Suspension systems come with the same quality shocks that are standard in our best-selling Kontrol Pro Coilover kits. Air kit shocks have a different internal valving setting to accommodate changes in psi.
Adjustable Lower Mount
Like our coilover kits, our Air Suspension systems allow the option for further fine tuning of ride height at any psi with an adjustable lower mount. This allows you to get the perfect ride height at almost any psi that you are comfortable driving at.
36-Way Adjustable Damping
All Ksport Airtech Air Suspension kits offer 36 levels of damping which allow you to dial in your air suspension even further. Set damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.
12 Month Limited Warranty
Airtech Executive Air Suspension systems come standard with a 12-month warranty which covers manufacturer defects.
Ksport Airtech Executive Air Suspension kits are designed for easy bolt-on installation. No modifications to OEM shock absorbers, or OEM top mounts is required. Professional installation is recommended. View Installation Instructions.

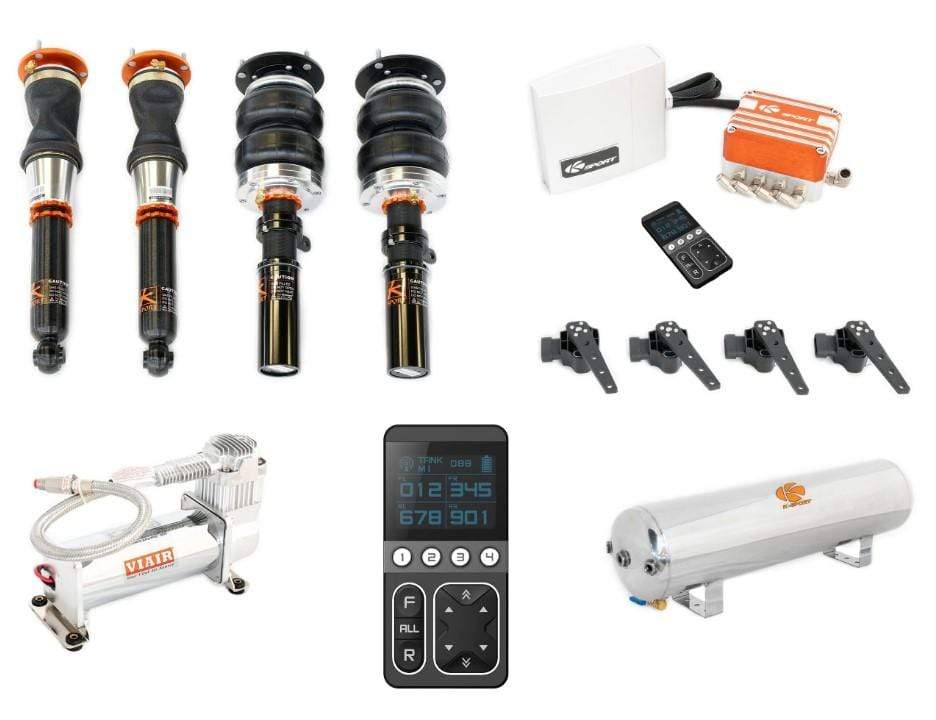

Standard Kit Includes:
- (4) High performance Ksport shock absorbers with 36 levels of damping and adjustable lower mount
- (4) High pressure air bags designed and engineered to match your vehicle
- (4) Height Sensors
- (1) 5-gallon lightweight polished air tank with 1/4” port (x2) and 3/8” port (x2)
- (1) Black carpeted mounting board
- (1) VIAIR 444c compressor
- (1) 165-200 psi pressure switch
- (2) 30amp Relay
- (1) Electronic Control Unit with 4 Corner independent control
- (1) OLED full color Remote Control
- (1) USB vehicle charger for OLED remote (no battery change necessary)
- (1) Standard 4 button remote
- (1) 10mm L-shape fitting
- (1) 10mm 1/4″ outer pitch L-shape fitting
- (1) 1/8PT to 1/4 pitch fitting
- (1) 3/8-1/4 fitting
- (1) 3/8” hose fitting
- (1) Iron plug
- (1) 25m 1/4″ air line
- (1) 1m 10mm air line
- (1) 5m power wire
- (1) Tool kit including spanner wrenches, damping adjustment knobs & brake line brackets (application specific)
- (1) Owner’s manual
*Important Note: Ksport Airtech Air Suspension kits are built to order – please allow 4-6 weeks for production and delivery.
