ACUITY Instruments

K-Series Fuel Rails

1913-BLK

  • Sale
  • $178.00
  • Regular price $198.00




Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

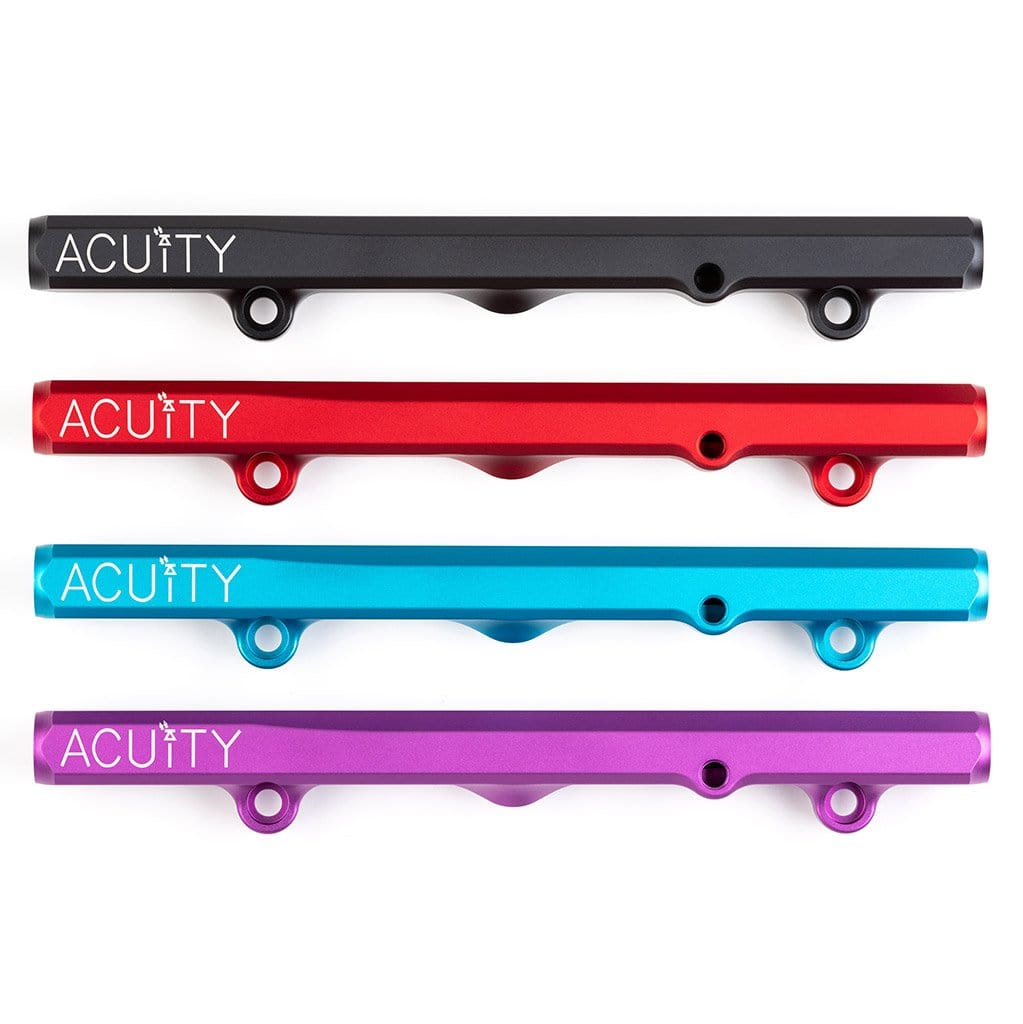

*1913-PPL, 1913-RED, 1913-TEL ON BACK ORDER - EXPECTED RESTOCK: 5/29/2020* (1913-BLK IS STILL IN STOCK)





Fittings sold separately.

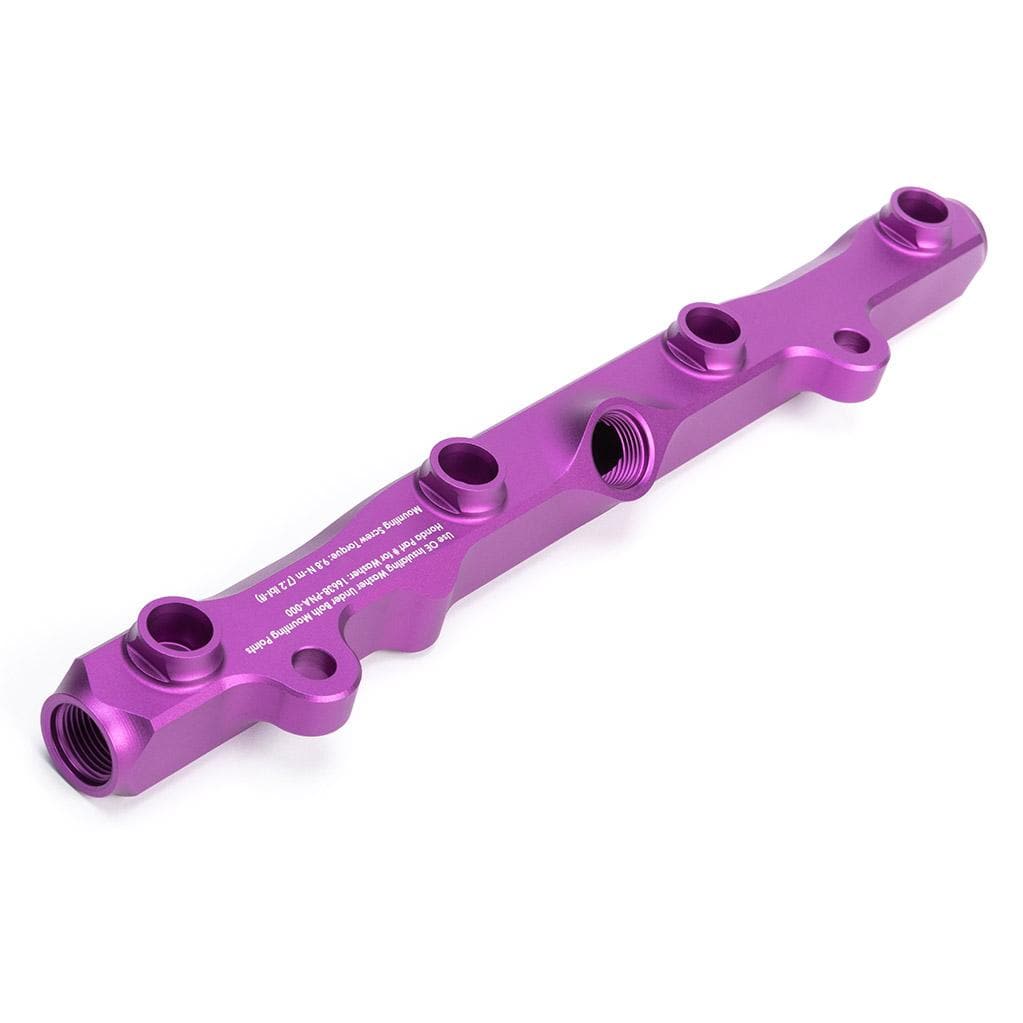

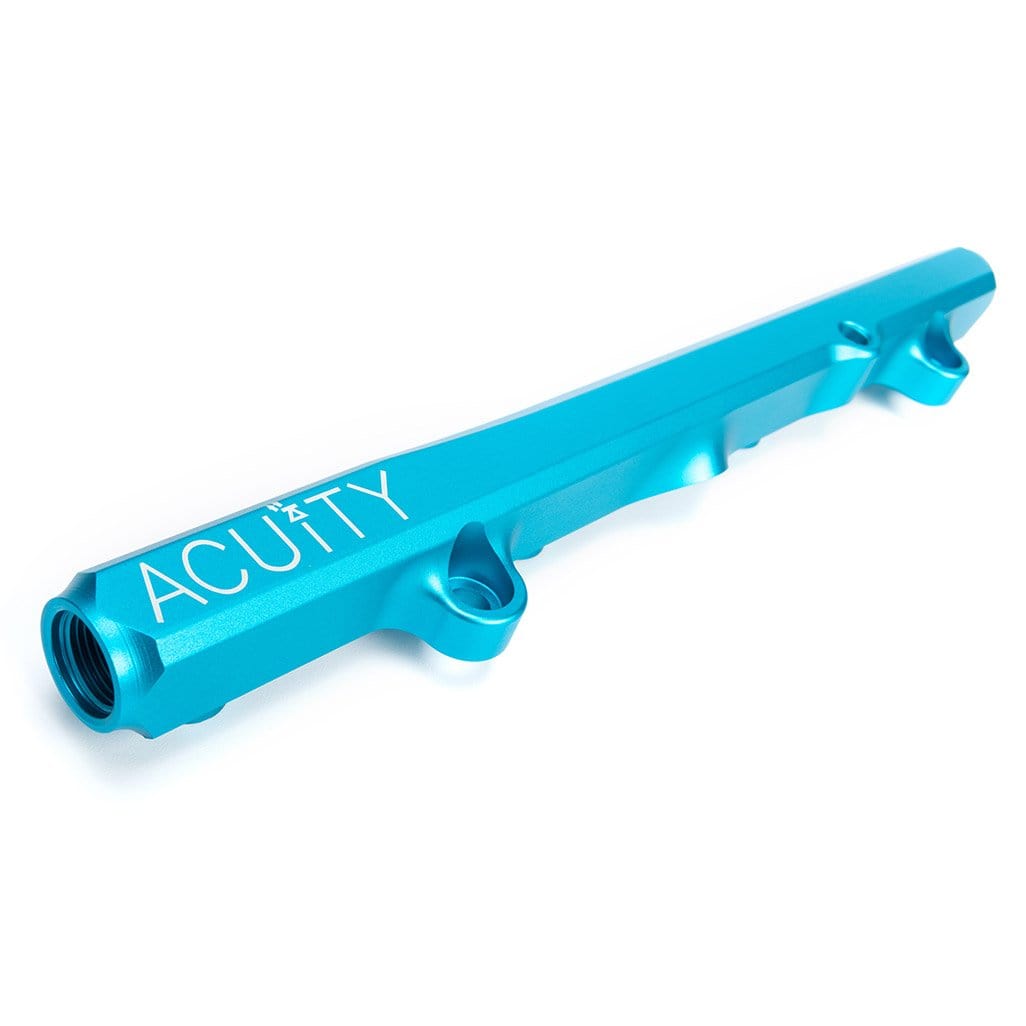

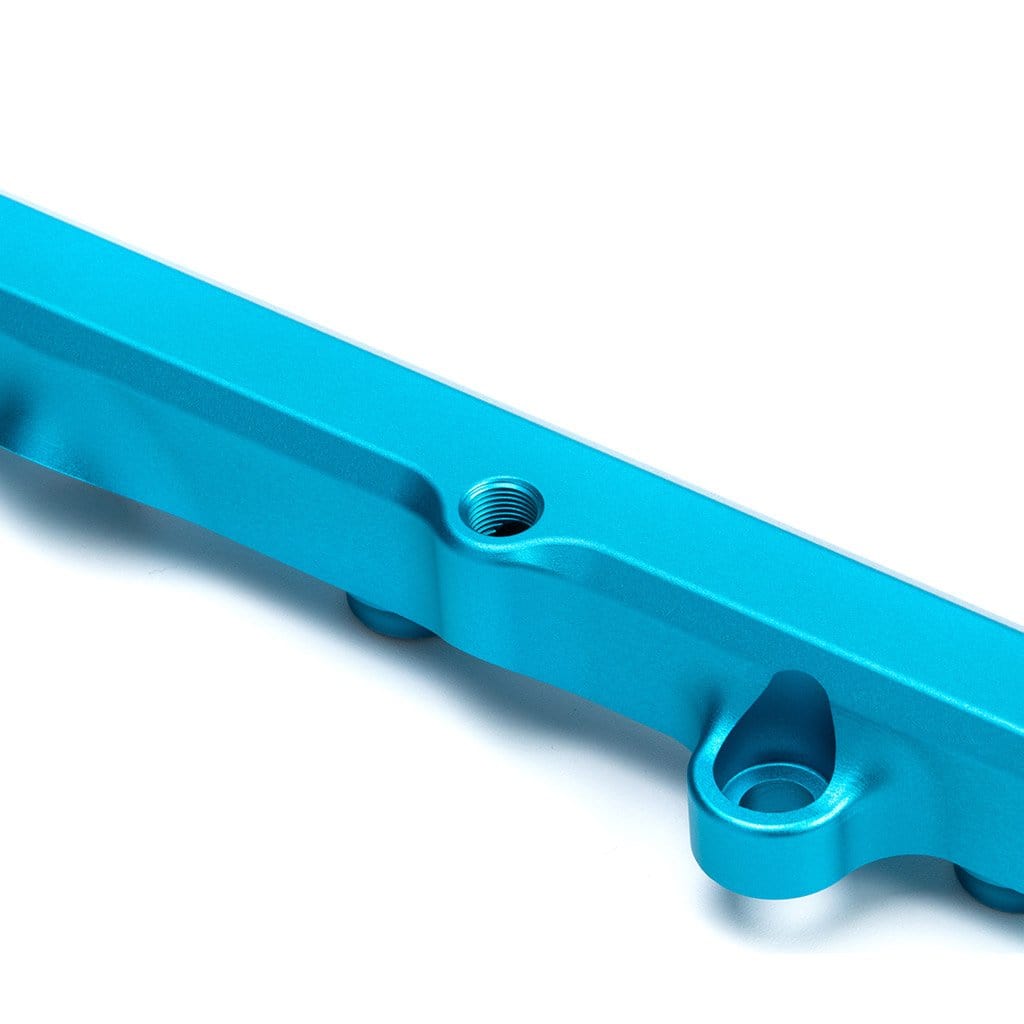

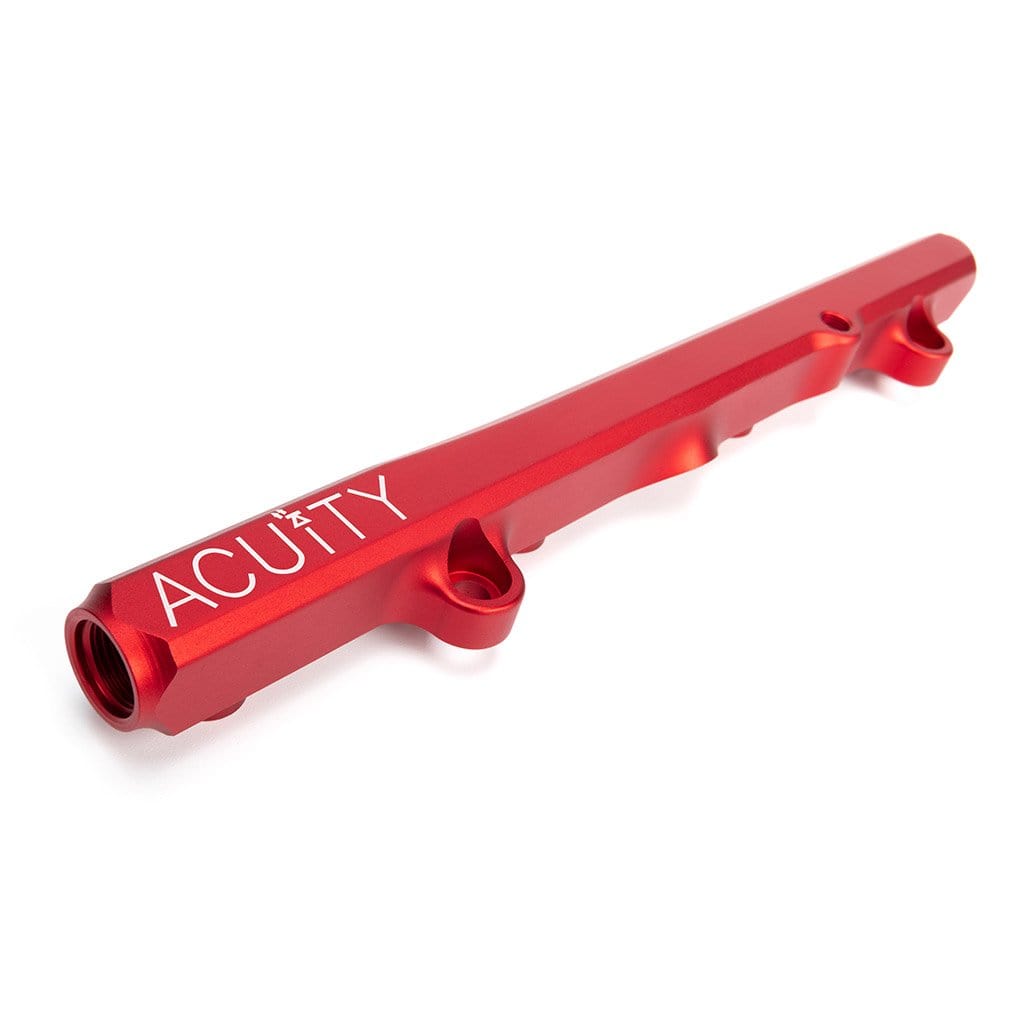

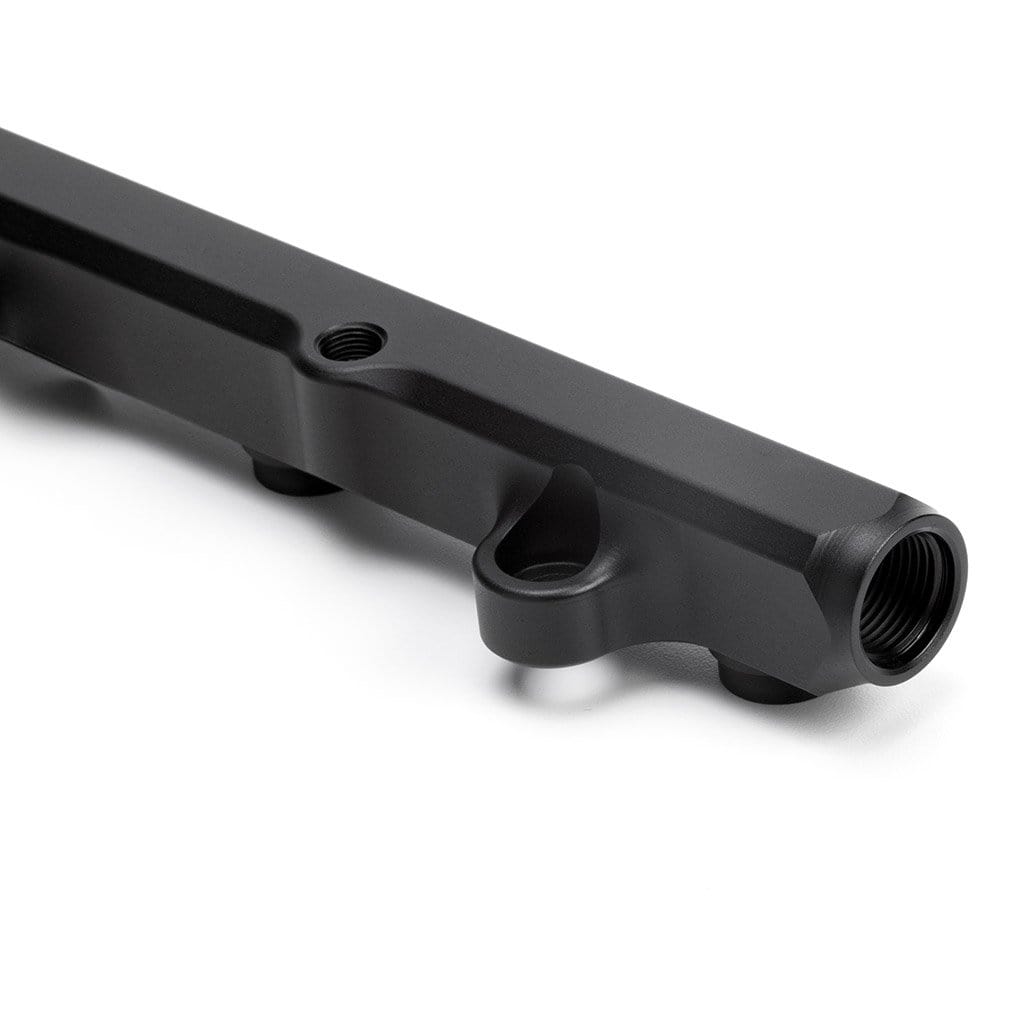

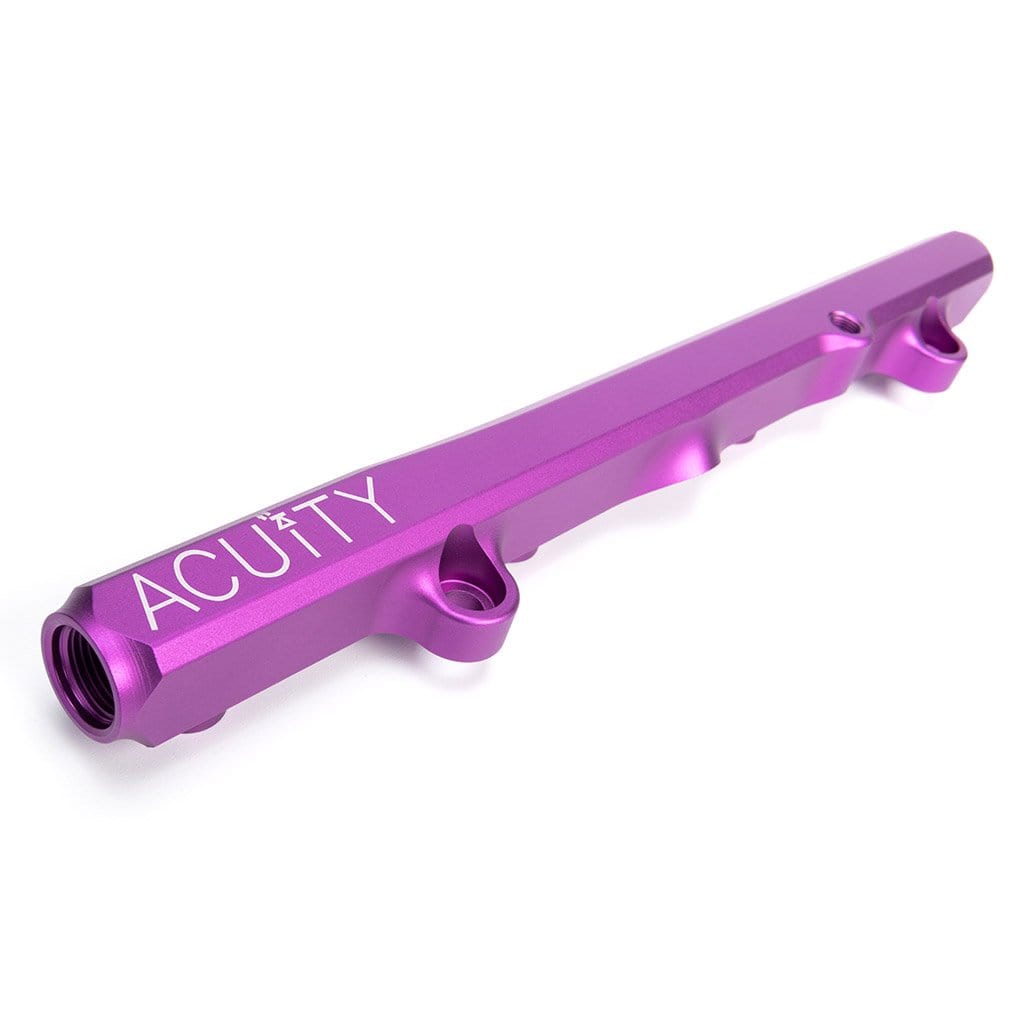

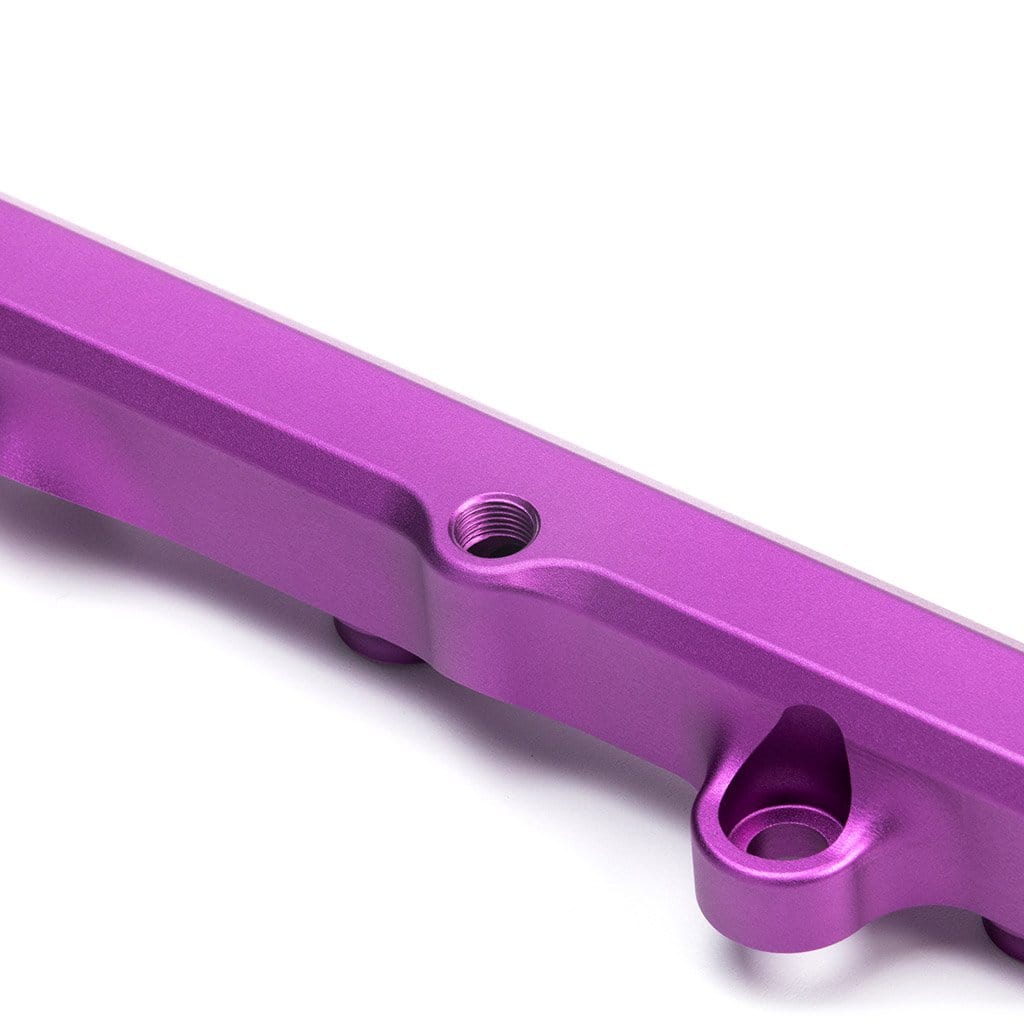

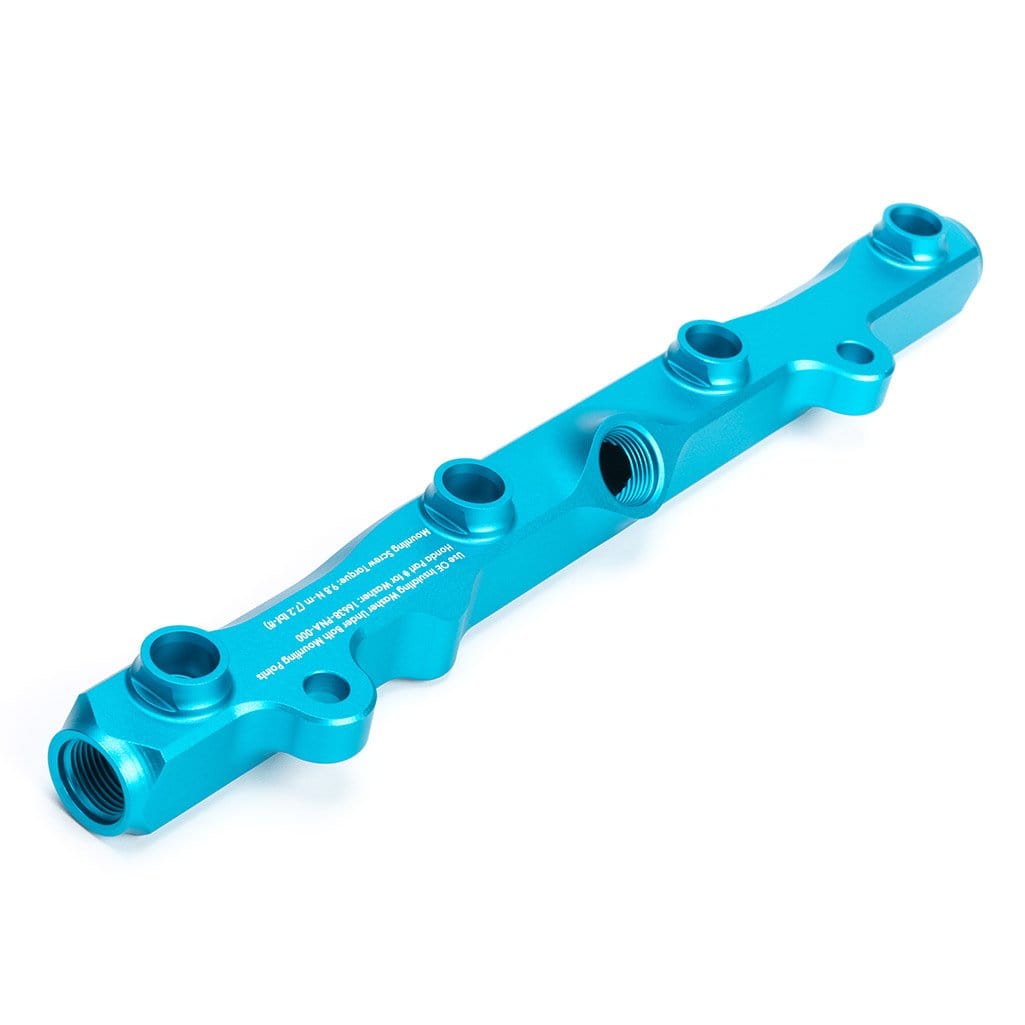

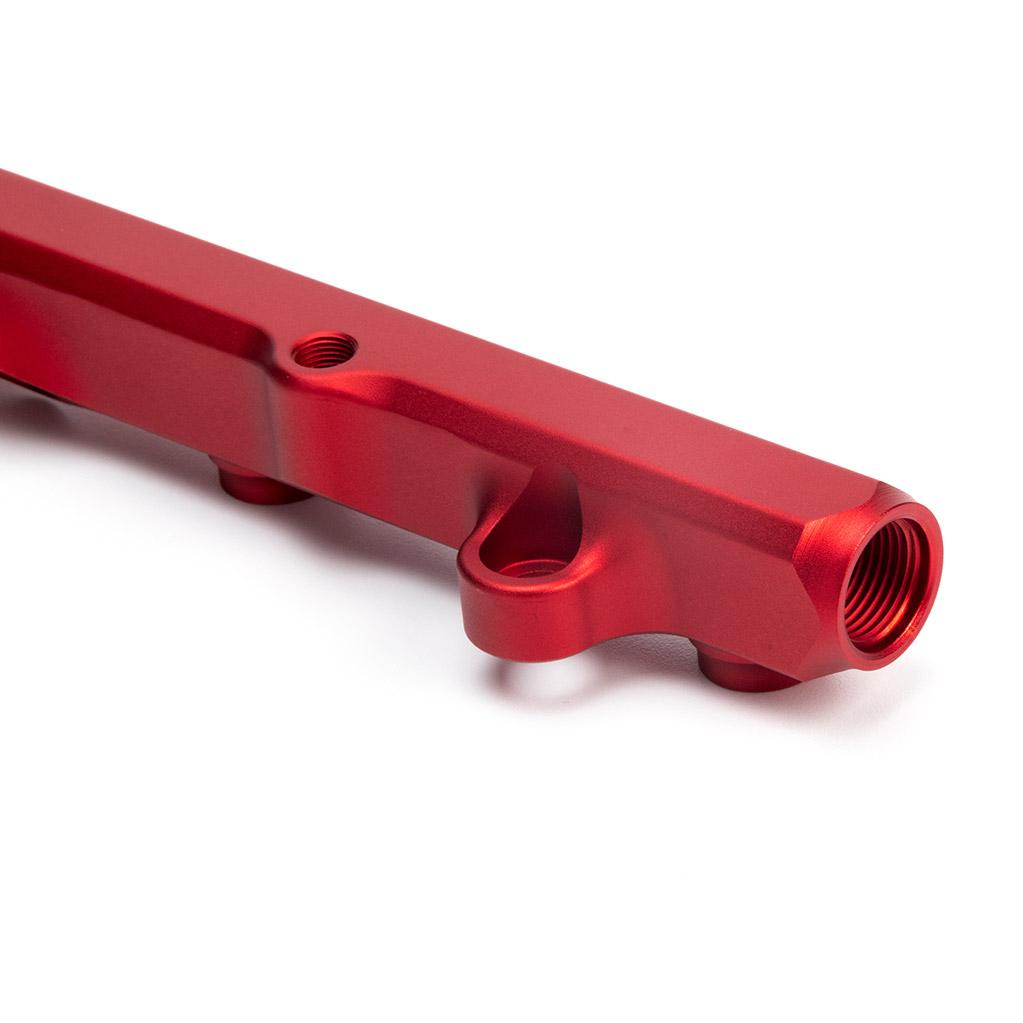

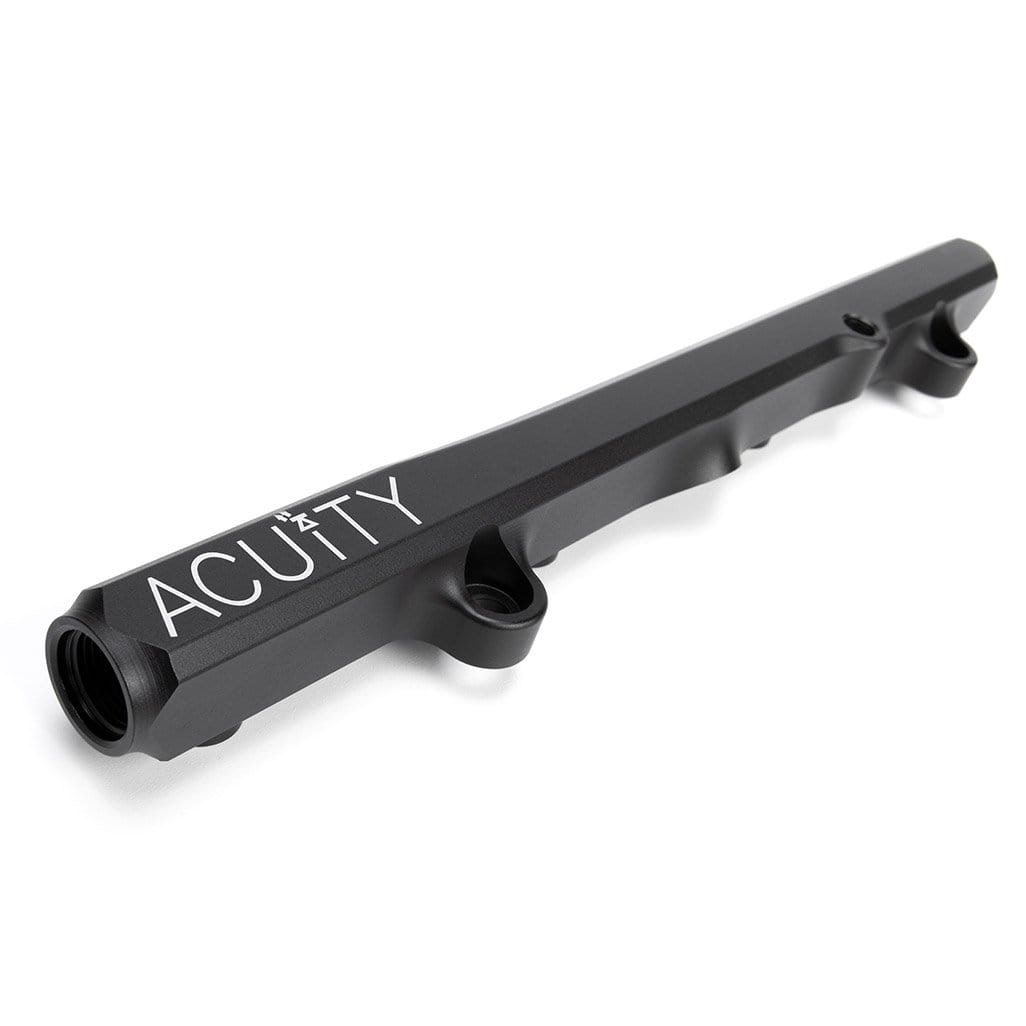

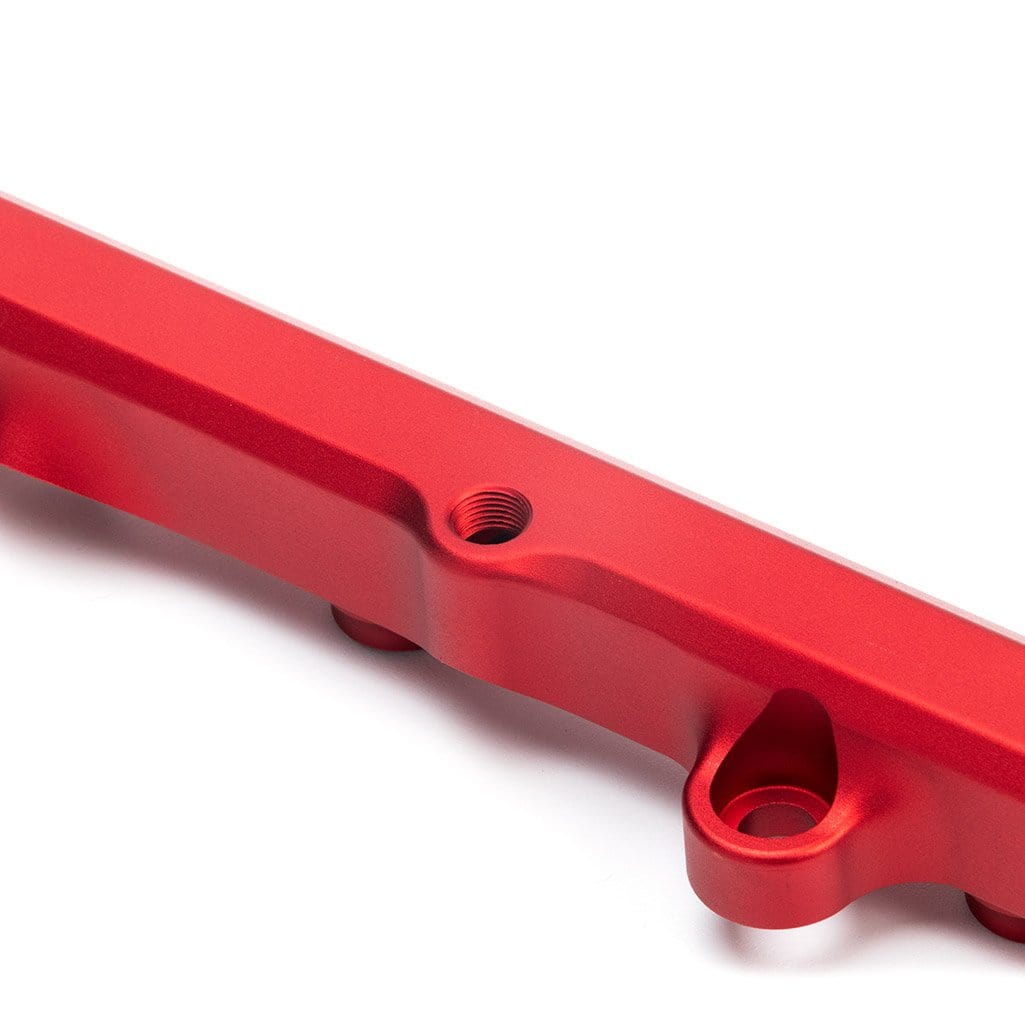

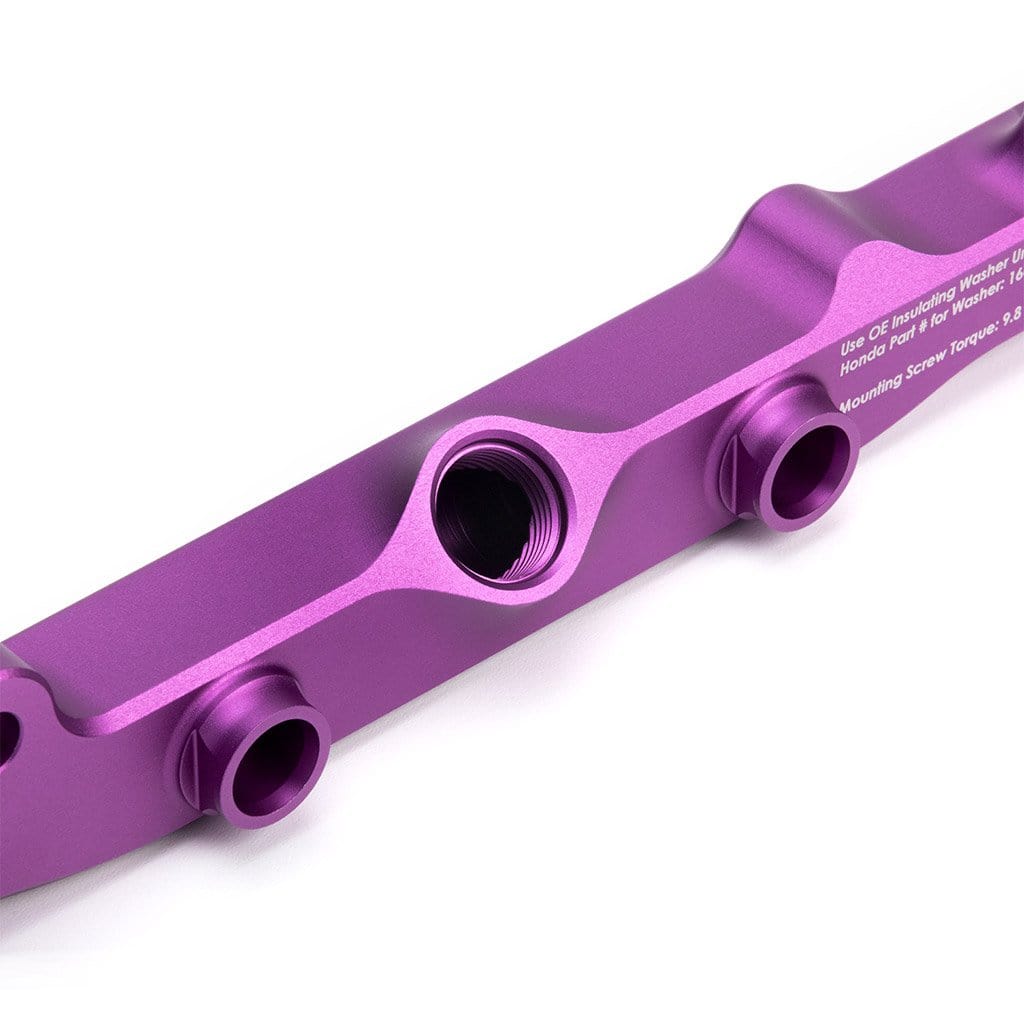

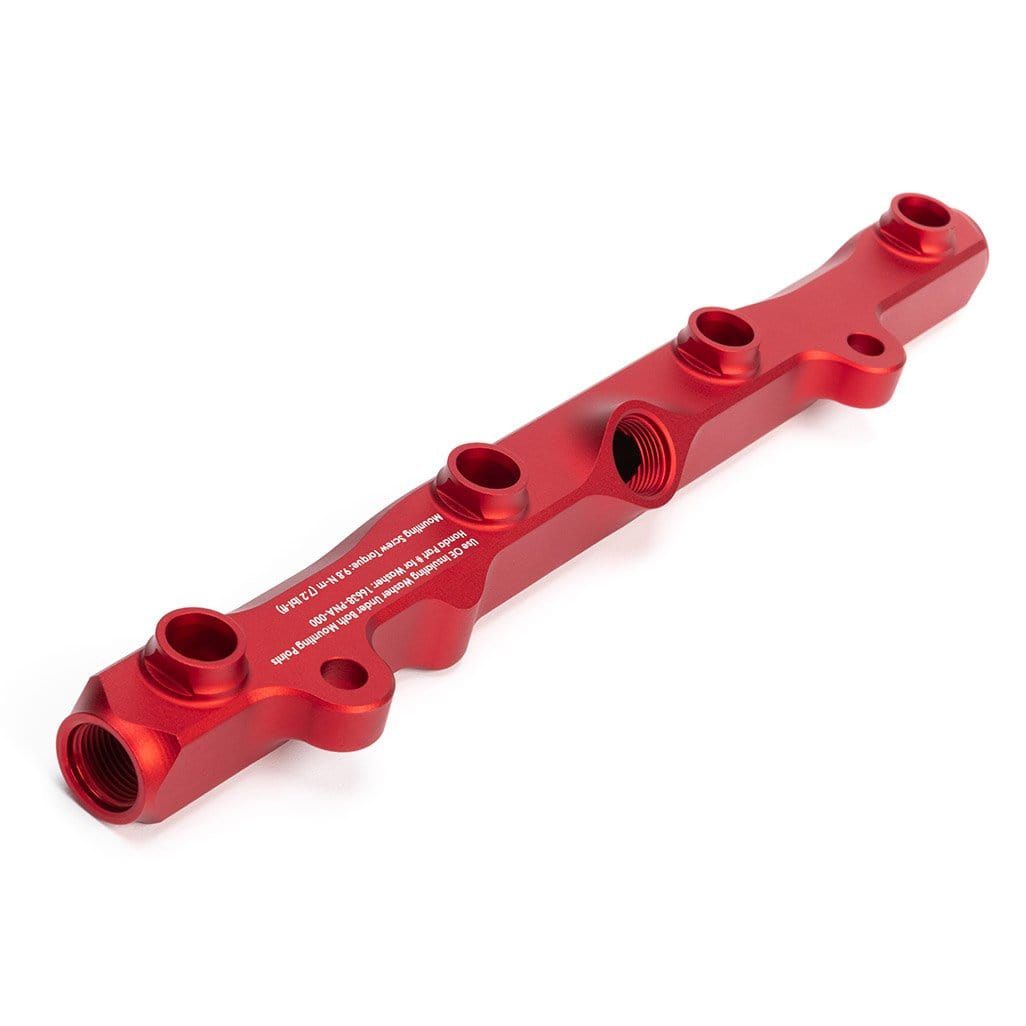

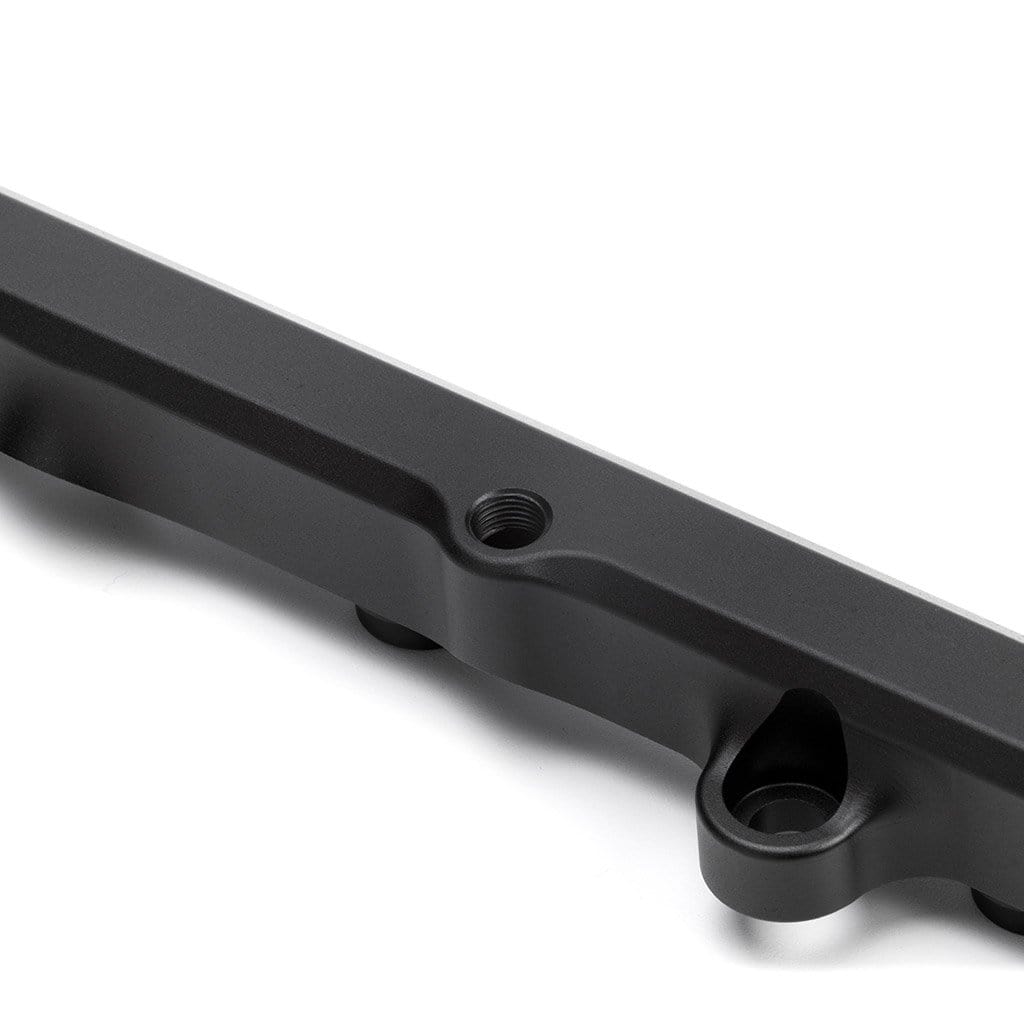

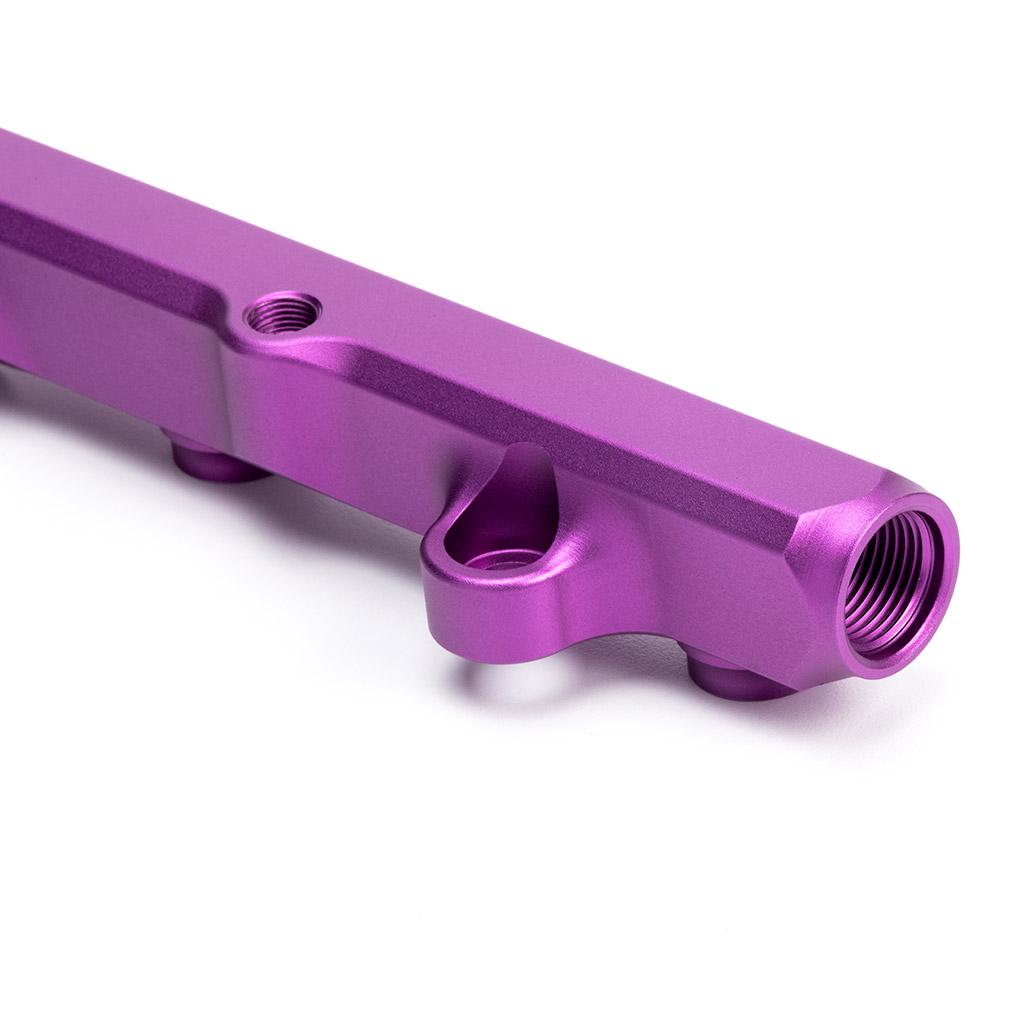

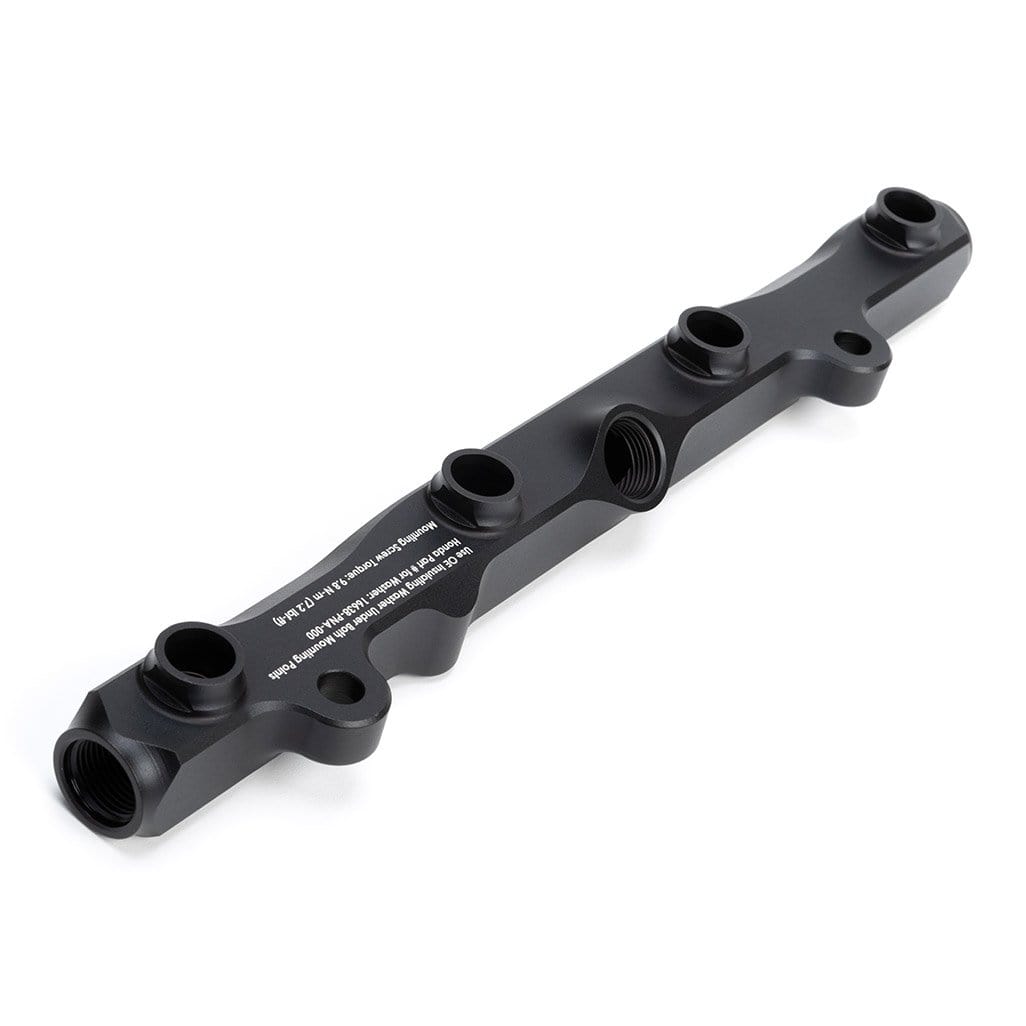

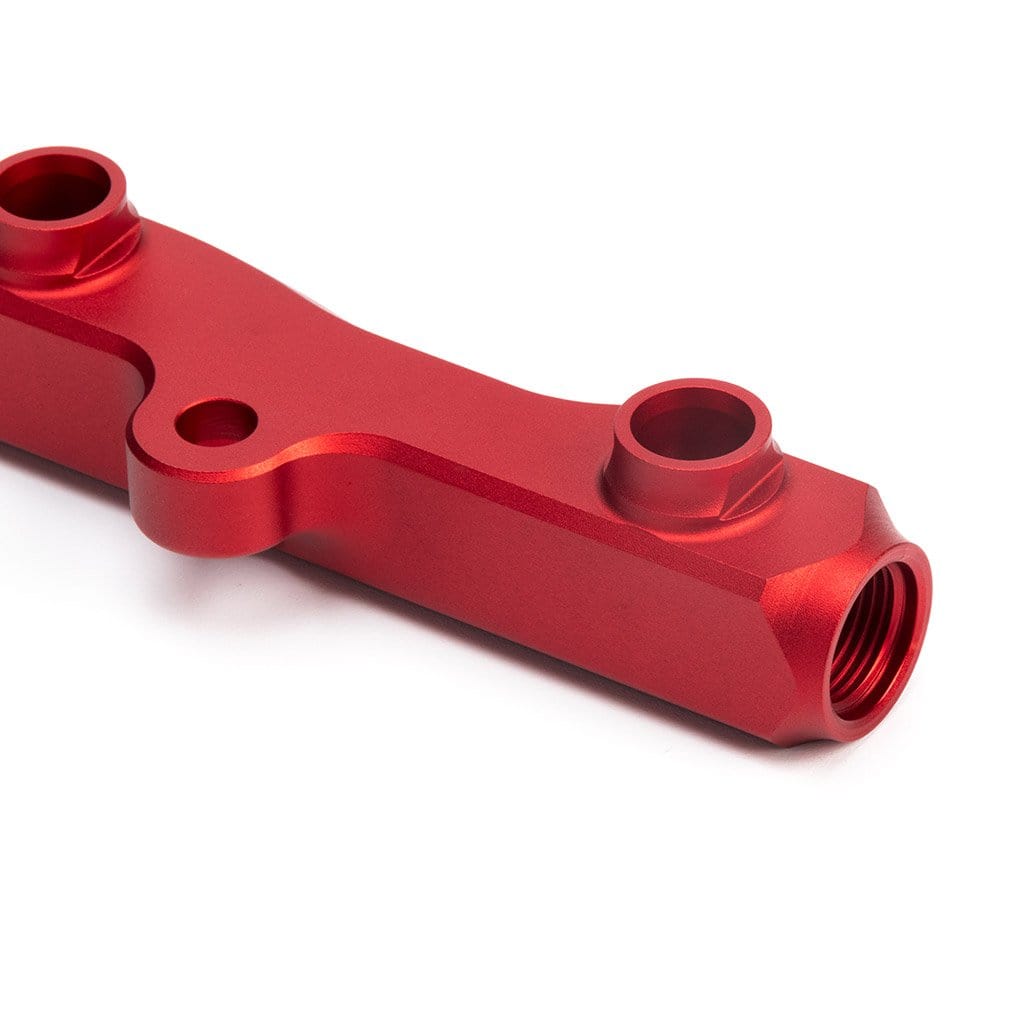

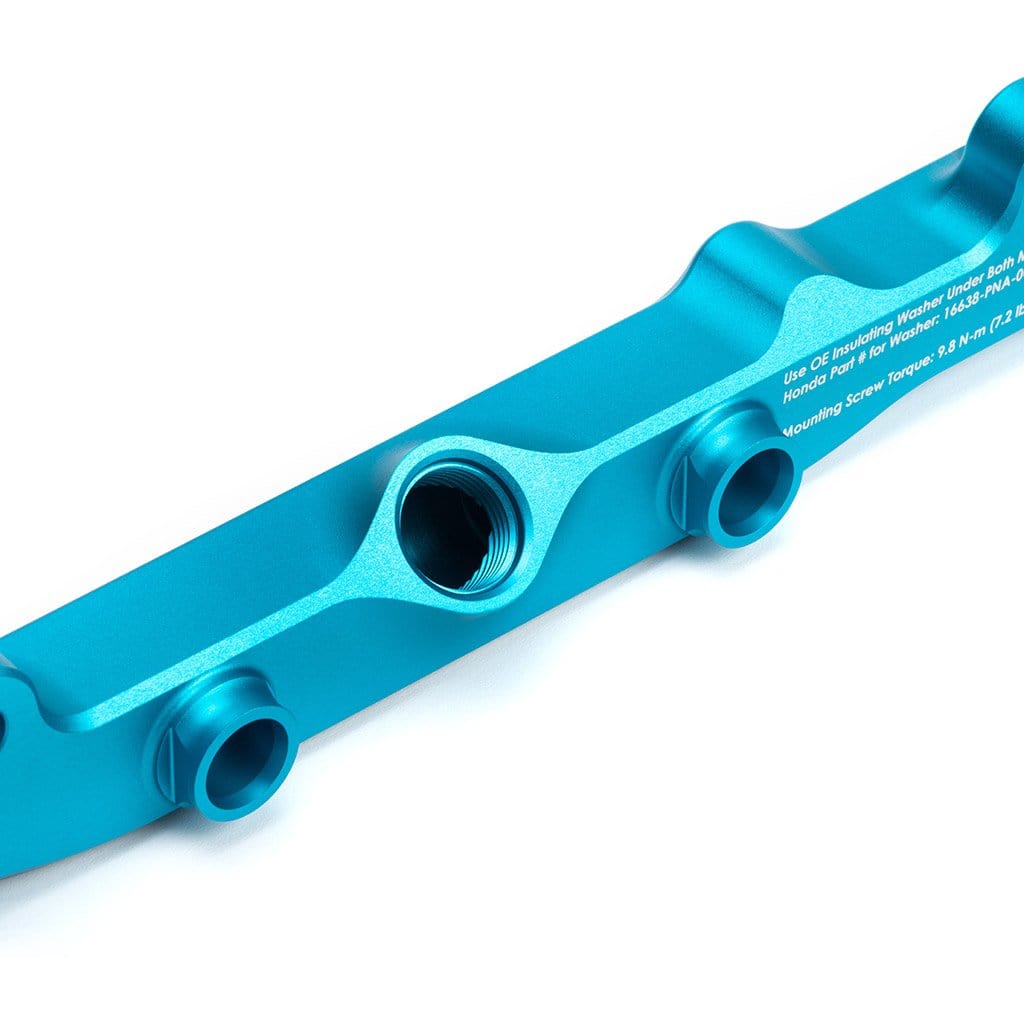

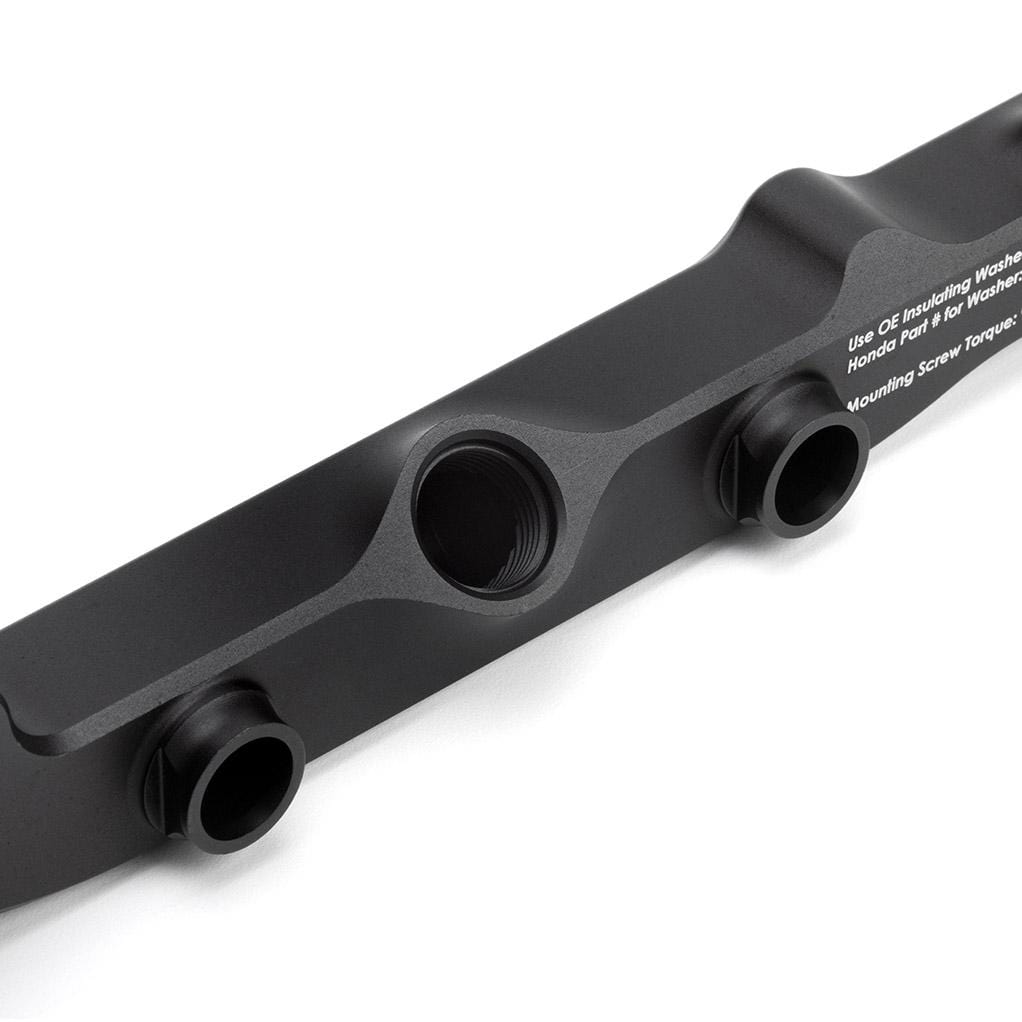

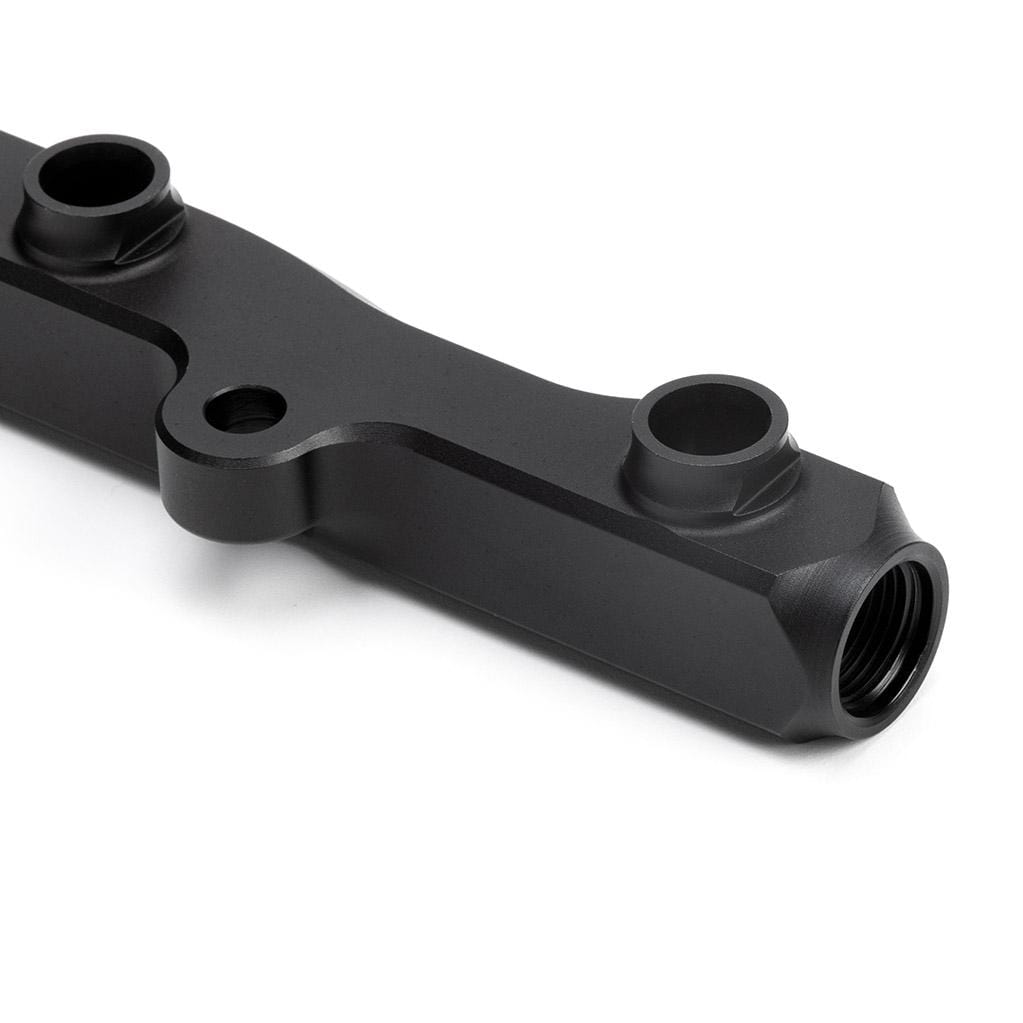

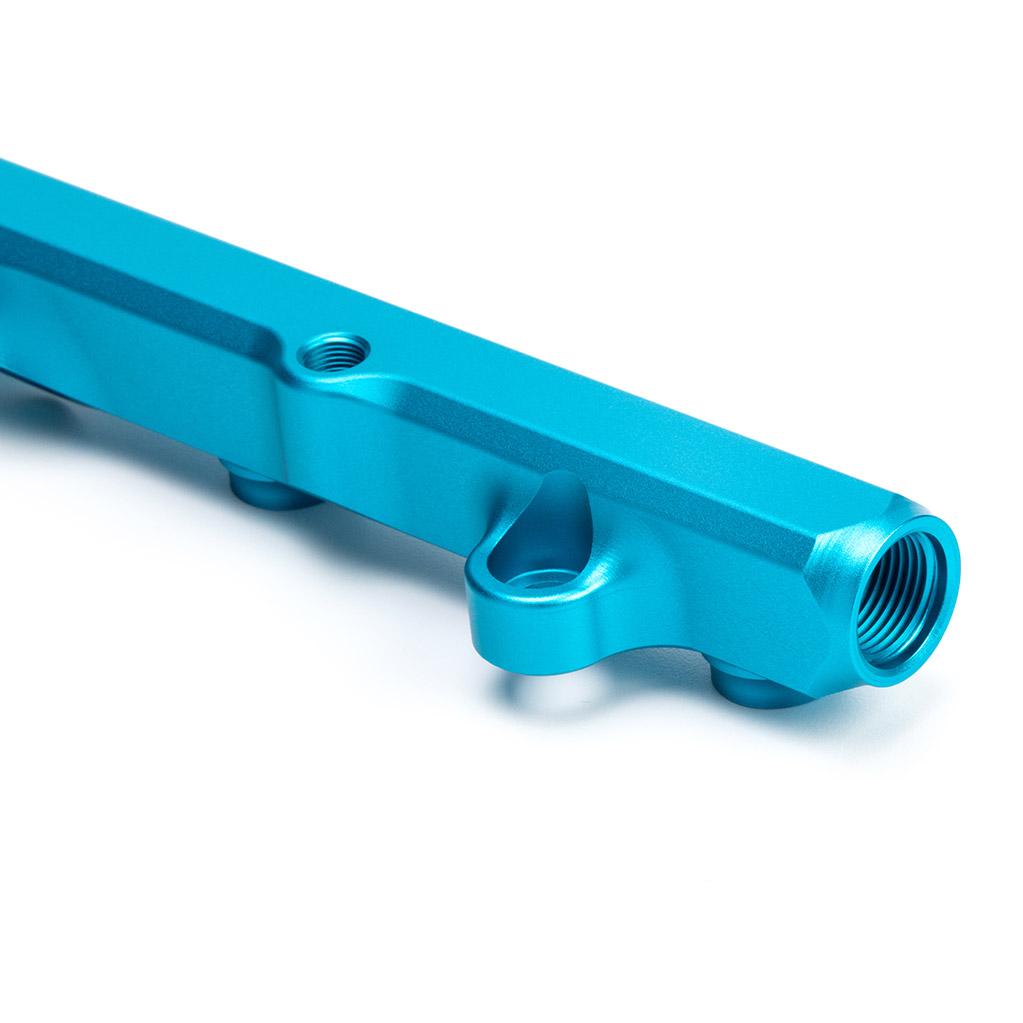

Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, ACUiTY's K-Series High-Flow Fuel Rail is the most versatile and refined solution available. With it's 1/8 NPT port on top, -8 o-ring boss (ORB) ports on both ends and another -8 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car (see "Fitment Info" for application-specific fitting requirements). Each rail is constructed from 6061-T6 aluminum and has a satin-texture, anodized finish with laser-etched technical info and logos.

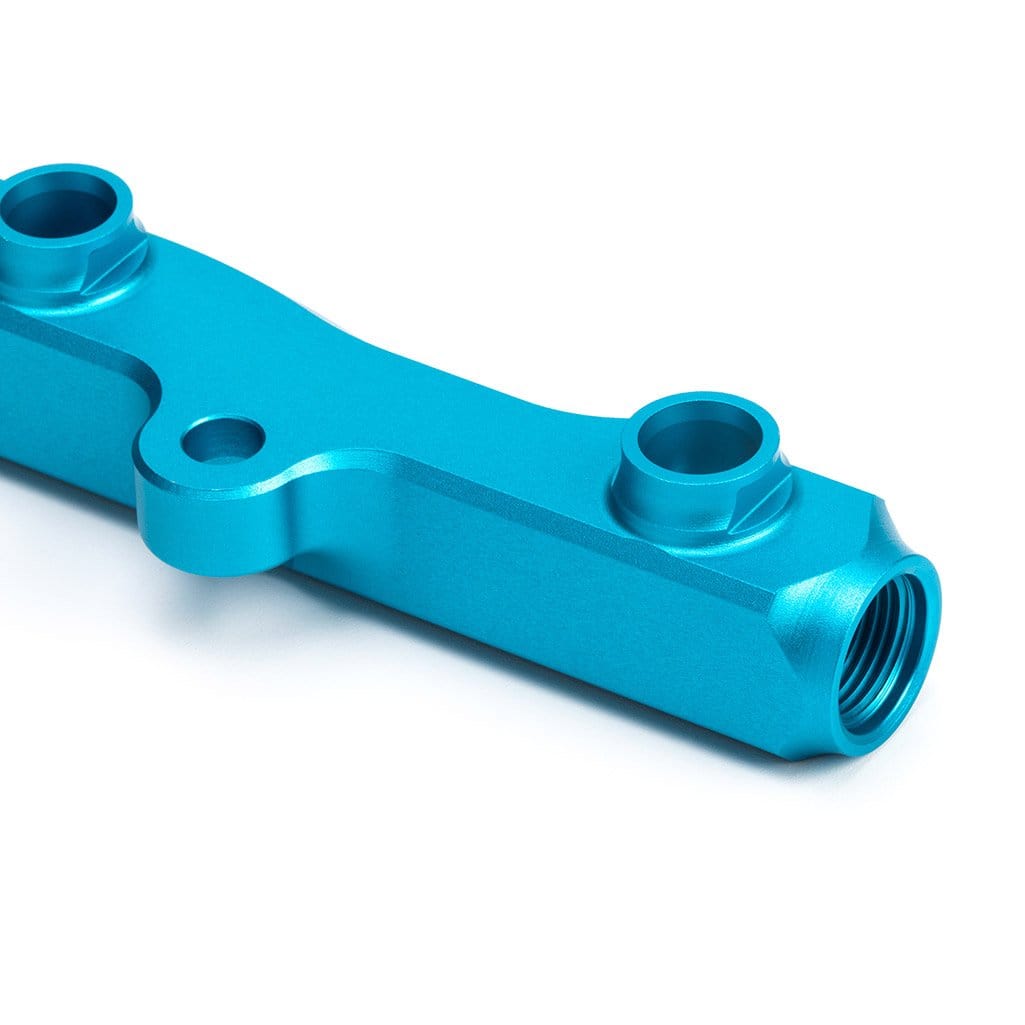

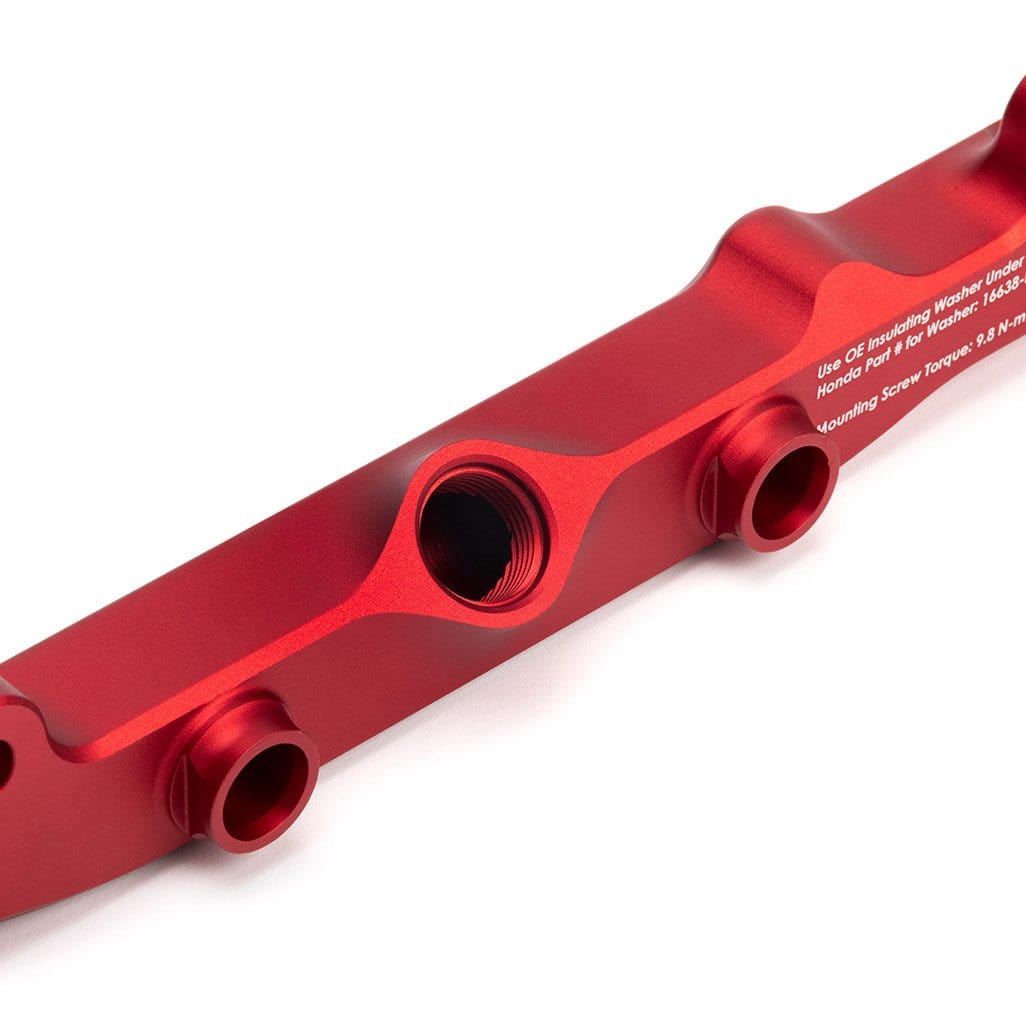

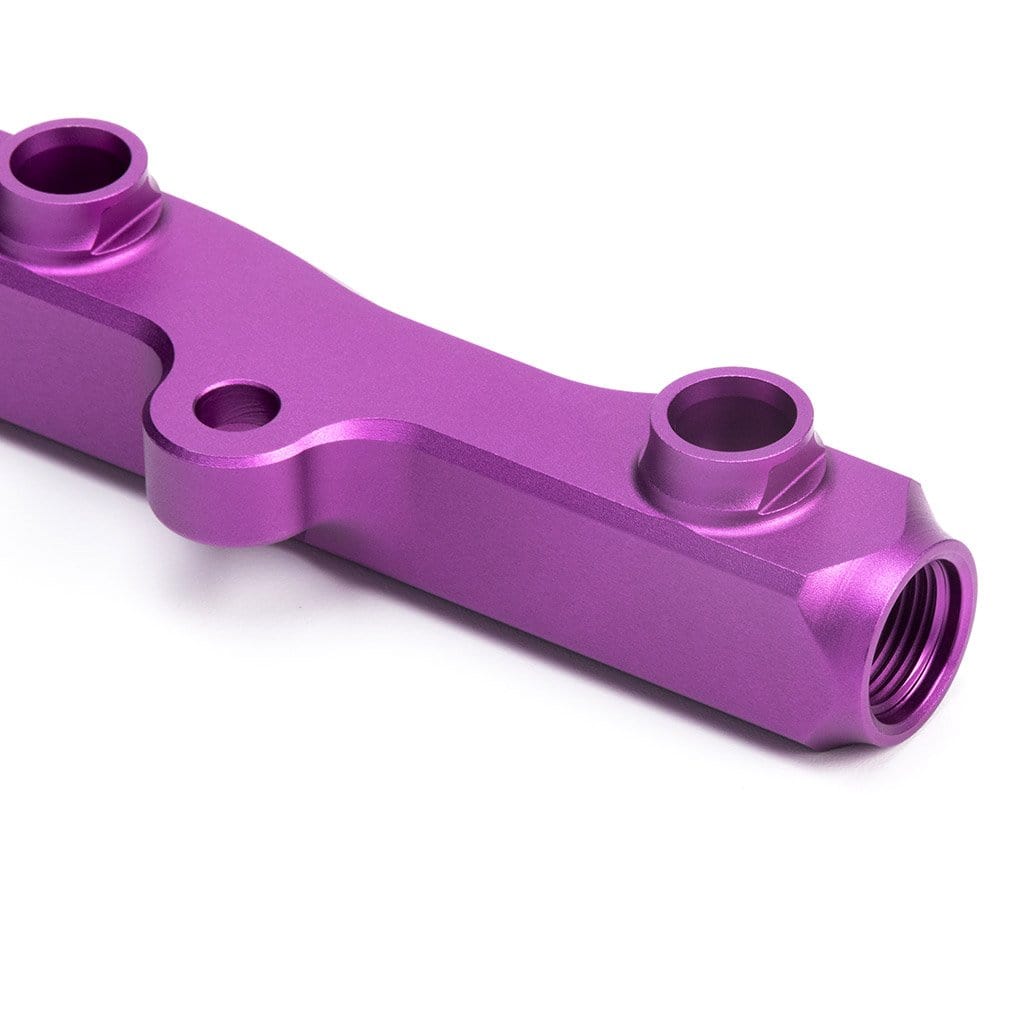

Among the rails' other features are countersunk mounting screw holes and supplied class 10.9+ hardware to replace the OEM studs. Each rail is also supplied with a stainless steel 1/8 NPT plug in case a top-mounted fuel pressure gauge is used. The end locations for the -8 ORB ports have been specifically machined to help reduce the likelihood of wrench damage to the rail's cosmetic finish during installation. As an added bonus rarely found on aftermarket rails, the rail allows the end-user to retain the OEM injector clips if you wish, just for some added peace of mind.

Tons of possible configurations (using optional fittings, sold separately).



Each kit includes:

  • 1x fuel rail
  • 2x class 10.9 mounting screws
  • 1x stainless steel 1/8 NPT plug.

You will need PTFE thread sealant (do not use teflon tape on fuel systems as it can foul injectors), and the appropriate fittings for your application. For a complete solution, see our application-specific fuel line kits



Fits most K-Series engines except for the direct-injected K20C and K20B engines

Fitting requirements vary based on application. Please see the application list and fitting requirements below:

  • 2001-2005 Civic Si and Type R
    2002-2006 Acura RSX, RSX-S, and Integra Type R
    2012-2015 Honda Civic Si

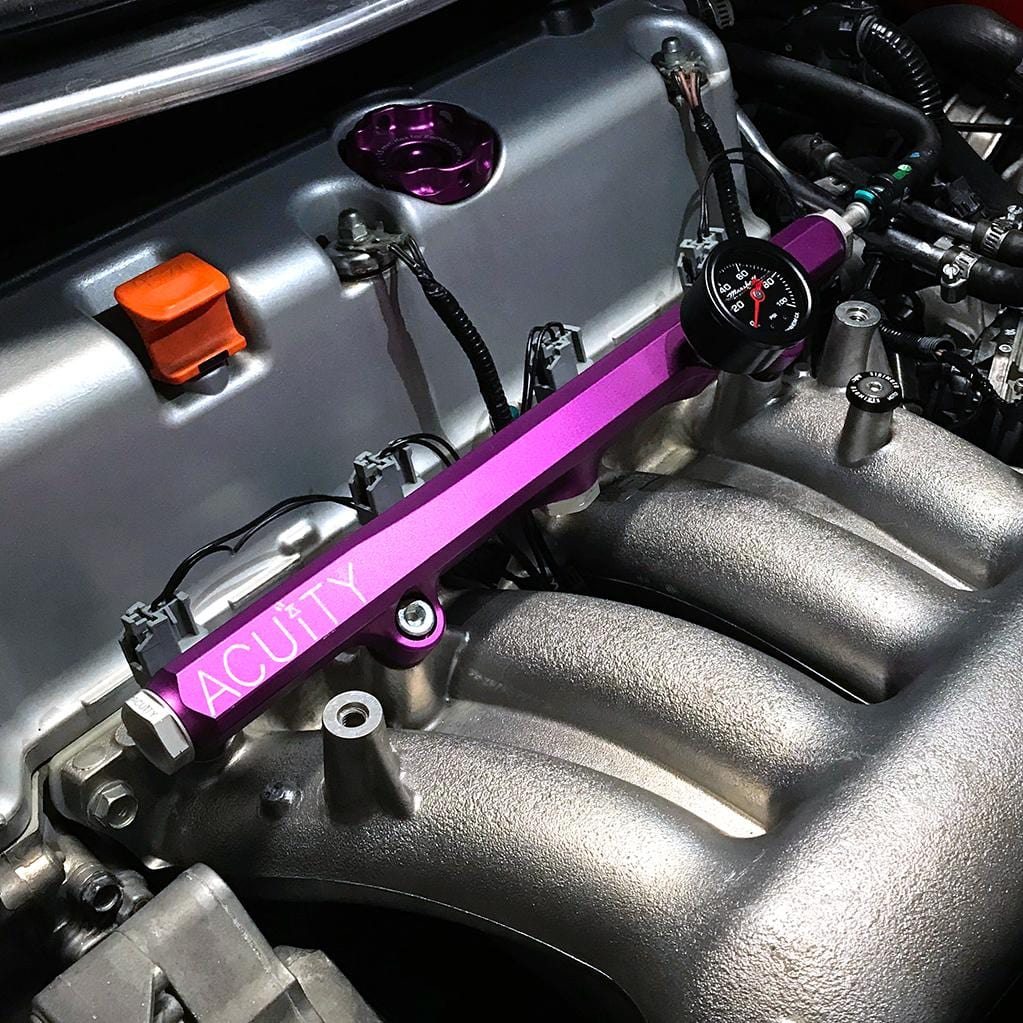

    • With OEM Fuel Line and side-mounted gauge
      (1x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F05 (1/8 NPT Adapter)
      (1x) 1913-F06 (5/16" Short Quick-Disconnect Adapter)
    • With OEM Fuel Line and top-mounted gauge or no-gauge
      (2x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F06 (5/16" Short Quick-Disconnect Adapter)
    • With -6AN center-feed or side-feed fuel lines and side-mounted gauge
      (1x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F03 (-6AN Adapter)
      (1x) 1913-F05 (1/8 NPT Adapter)
    • With -6AN center-feed or side-feed fuel lines and top-mounted gauge or no-gauge
      (2x) 1913-F02 (-8 ORB Plugs)
      (1x) 1913-F03 (-6AN Adapter)
    • With -6AN return-style fuel lines
      (1x) 1913-F02 (-8 ORB Plugs)
      (2x) 1913-F03 (-6AN Adapter)
    • With -8AN return-style fuel lines
      (1x) 1913-F02 (-8 ORB Plugs)
      (2x) 1913-F04 (-8AN Adapter)
    • 2006-2011 Honda Civic Si and Type R
      • With OEM Fuel Line and side-mounted gauge
        (1x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F05 (1/8 NPT Adapter)
        (1x) 1913-F07 (5/16" Long Quick-Disconnect Adapter)
      • With OEM Fuel Line and top-mounted gauge or no-gauge
        (2x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F07 (5/16" Long Quick-Disconnect Adapter)
      • With -6AN center-feed or side-feed fuel lines and side-mounted gauge
        (1x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F03 (-6AN Adapter)
        (1x) 1913-F05 (1/8 NPT Adapter)
      • With -6AN center-feed or side-feed fuel lines and top-mounted gauge or no-gauge
        (2x) 1913-F02 (-8 ORB Plugs)
        (1x) 1913-F03 (-6AN Adapter)
      • With -6AN return-style fuel lines
        (1x) 1913-F02 (-8 ORB Plugs)
        (2x) 1913-F03 (-6AN Adapter)
      • With -8AN return-style fuel lines
        (1x) 1913-F02 (-8 ORB Plugs)
        (2x) 1913-F04 (-8AN Adapter)
      • K-Swaps
        • With -6AN center-feed or side-feed fuel lines and side-mounted gauge
          (1x) 1913-F02 (-8 ORB Plugs)
          (1x) 1913-F03 (-6AN Adapter)
          (1x) 1913-F05 (1/8 NPT Adapter)
        • With -6AN center-feed or side-feed fuel lines and top-mounted gauge or no-gauge
          (2x) 1913-F02 (-8 ORB Plugs)
          (1x) 1913-F03 (-6AN Adapter)
        • With -6AN return-style fuel lines
          (1x) 1913-F02 (-8 ORB Plugs)
          (2x) 1913-F03 (-6AN Adapter)
        • With -8AN return-style fuel lines
          (1x) 1913-F02 (-8 ORB Plugs)
          (2x) 1913-F04 (-8AN Adapter)
