Looking for a simple way to read ethanol content DIRECTLY from your ethanol sensor?
P3 Gauges has developed a simple device that will allow you to read information directly from your ethanol sensor.
To use with the P3 Gauge, simply select the "EC" (ethanol content) or "FT" (fuel temp) option for one of the two universal analog inputs.

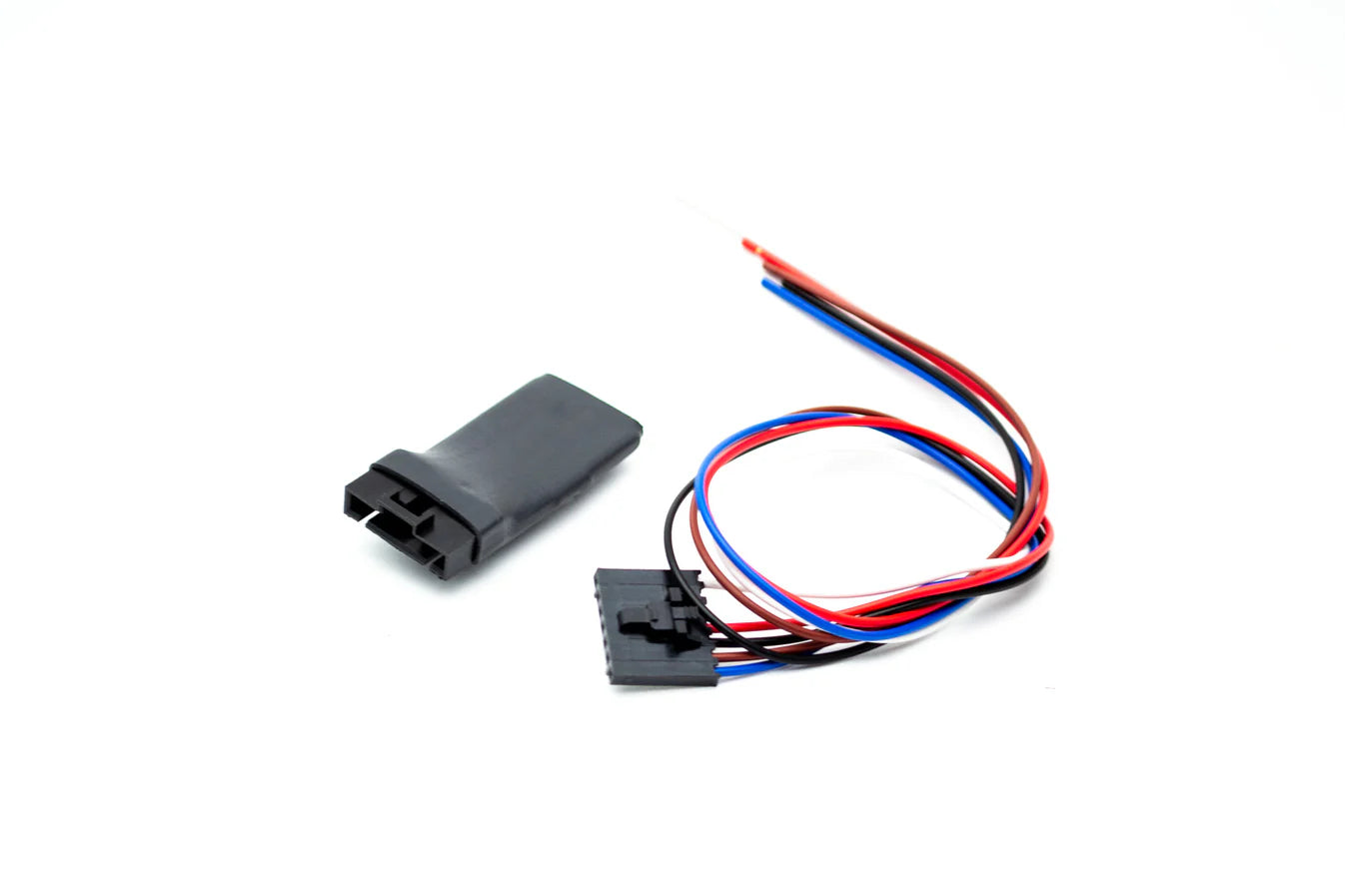

P3 Ethanol Sensor Voltage Adaptor (ESVA)
- Allows ANY 0-5v linear input gauge to correctly read information directly from Continental/GM style ethanol (FlexFuel) sensor
- Has two separate outputs (1-ethanol content / 2-fuel temperature)

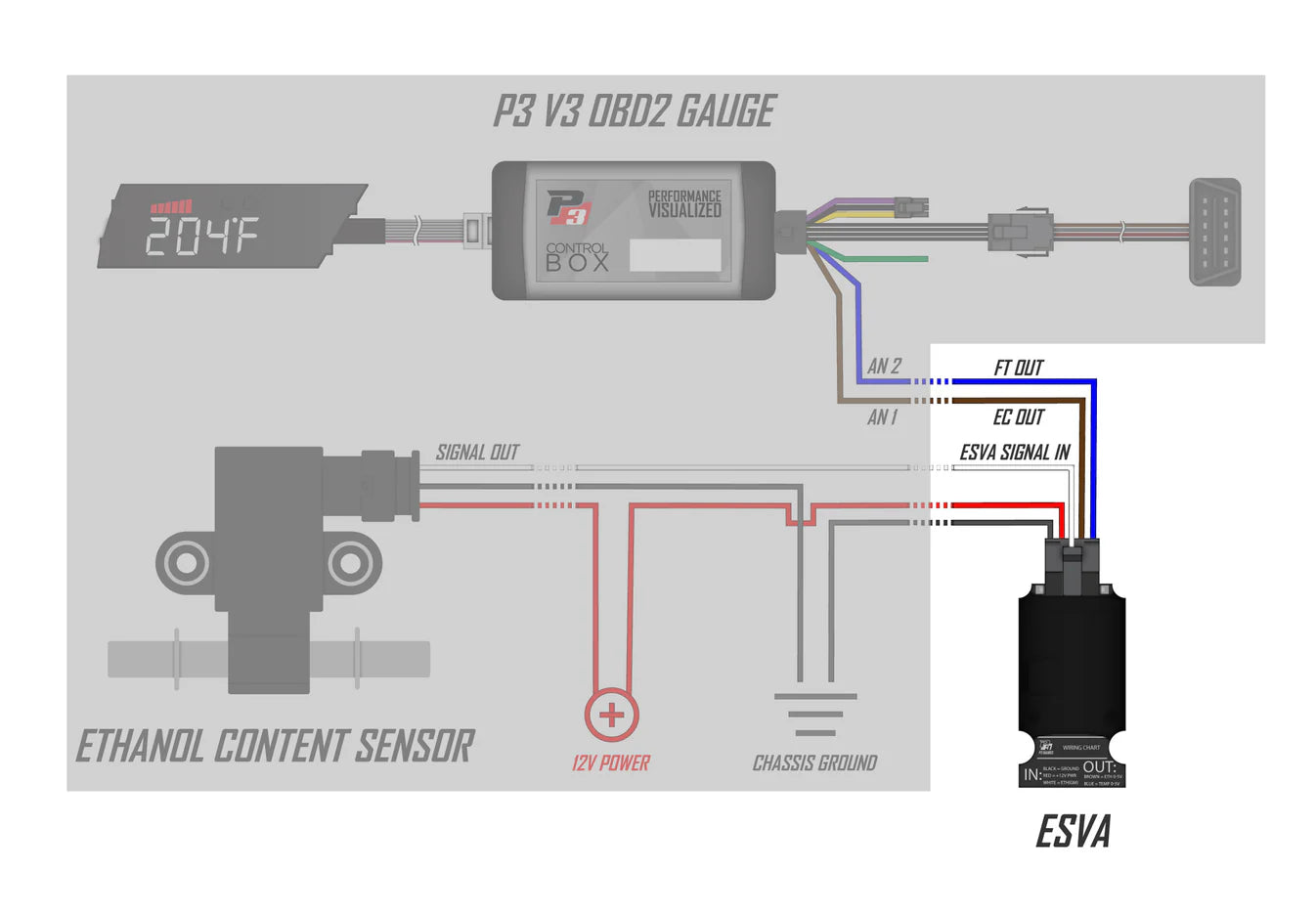

- Easy install between ethanol sensor and gauge
- Taps into signal output of ethanol sensor and wires directly to gauge, 12volt power and ground
-
NOT A WATERPROOF DEVICE / Must be protected from the elements. We recommend locating ESVA with control box of P3 Gauge
- **Ethanol sensor NOT included**
