PRL Motorsports Front Mount Intercooler Upgrade Kit for 2016-2021 Honda Civic 1.5T [FC1/FC3/FK7] Read reviews

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs.

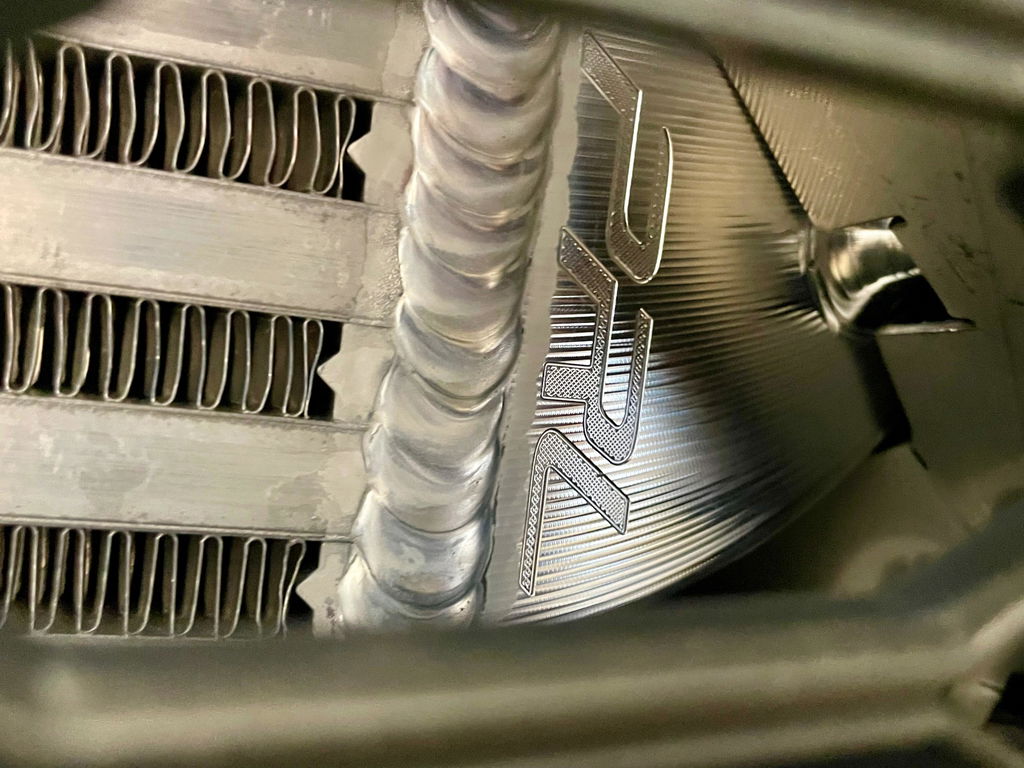

The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 25.6x4x6.3” bar-and-plate bar-and-plate core and machined billet aluminum end tanks!

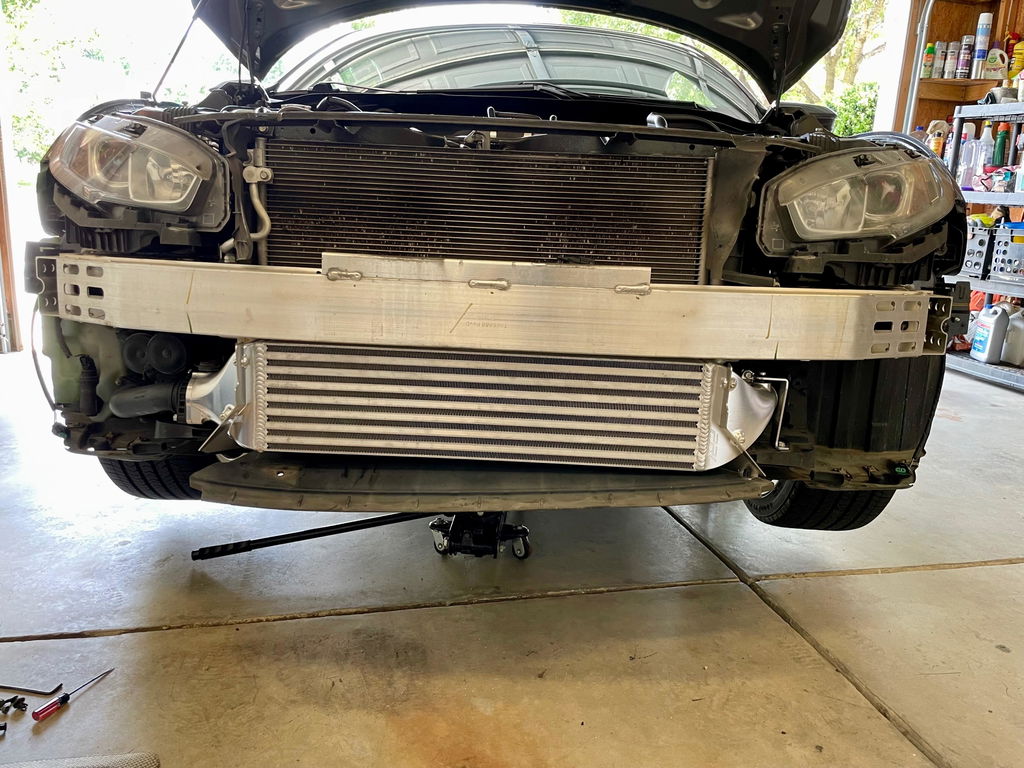

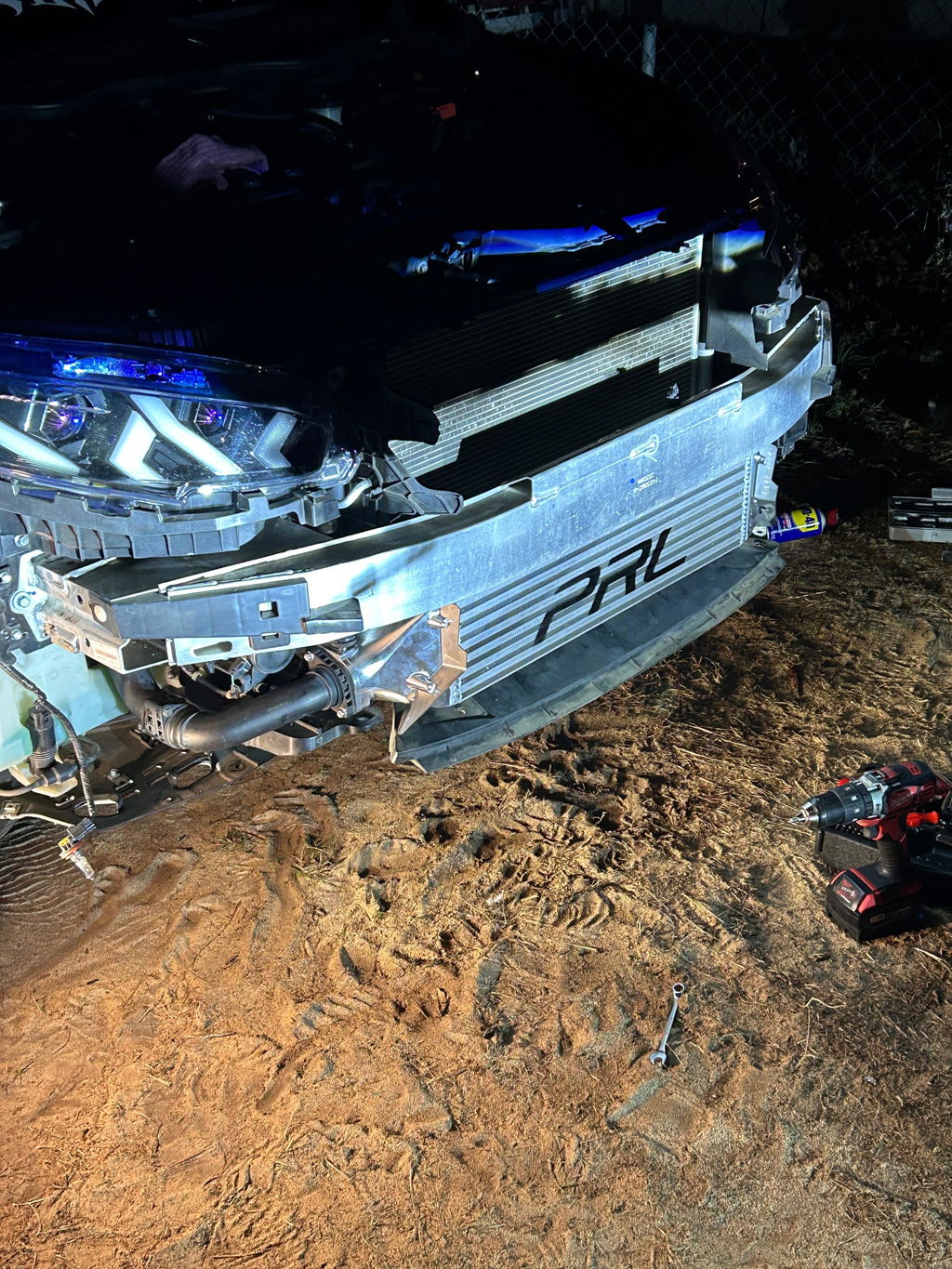

This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.

50 State Legal CARB Approved: EO D-878

Important Notes:

• NO ECU CALIBRATION REQUIRED
• THERE ARE (2) TOTAL O-RINGS IN THE FACTORY CHARGE PIPE SYSTEM. O-RINGS MAY BE SUBJECT TO REPLACEMENT IF TORN, DRY-ROTTED, DISFORMED OR HIGH MILEAGE

• FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE

Intercooler Kit Includes:

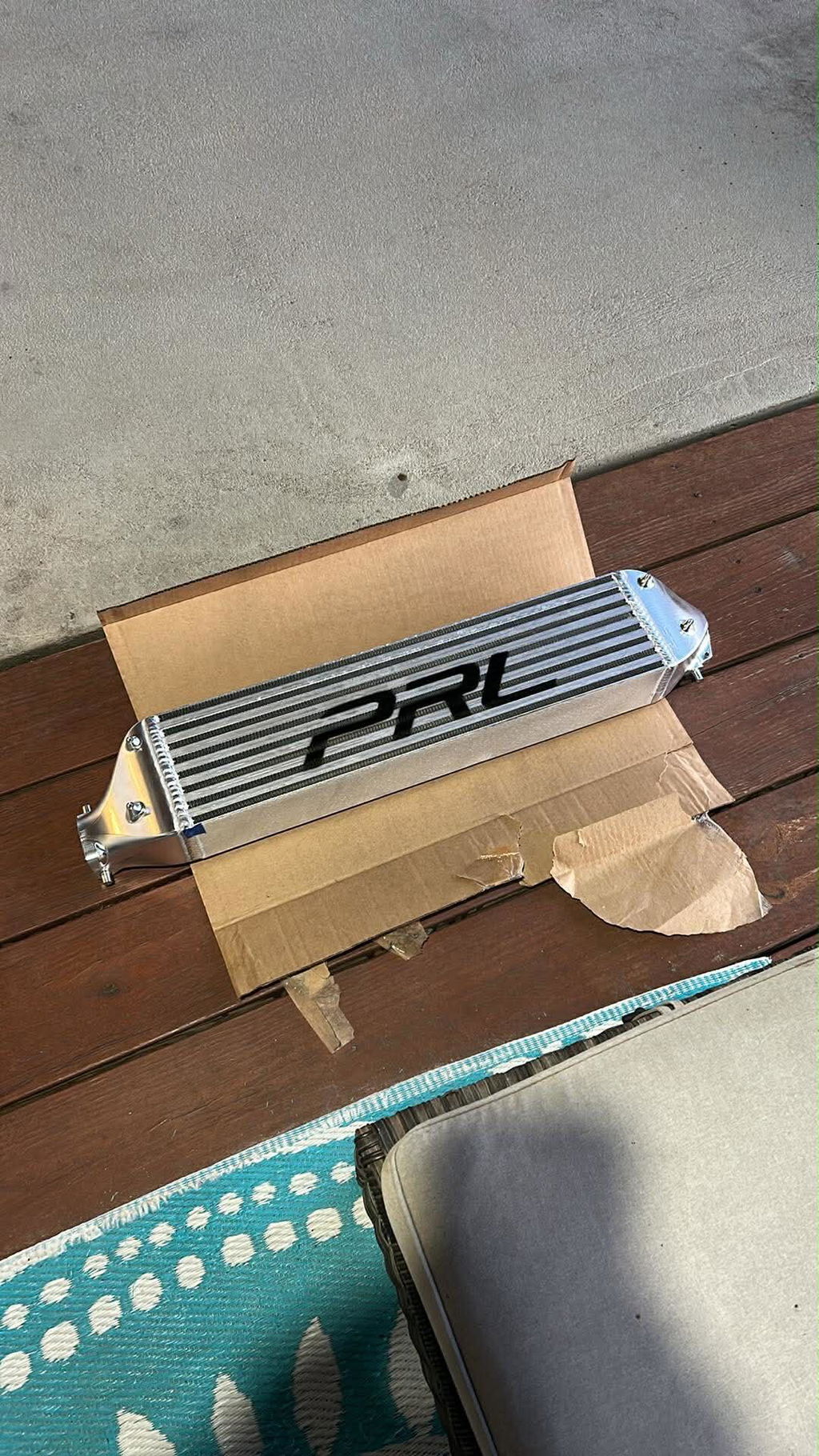

• (1) Intercooler Assembly w/ Billet End Tanks
• (2) Air Guides w/ Stainless Hardware
• (2) Billet Aluminum Factory Charge Pipe Adapters
• (1) Cardboard Stencil w/ “PRL” Logo

Charge Pipe Upgrade Kit Includes:

• (1) Intercooler Assembly w/ Billet End Tanks
• (2) Air Guides w/ Stainless Hardware
• (2) Billet Aluminum Factory Charge Pipe Adapters
• (1) Cardboard Stencil w/ “PRL” Logo
• (1) Hot Side Charge Pipe
• (1) Cold Side Charge Pipe w/ Methanol Injection Bung & Machined Billet Aluminum Flange
• (1) -4AN O-Ring to 1/4" Hose Barb (Pre-Installed in Cold Side Charge Pipe)
• (1) 1/8” NPT Pipe Plug (Pre-Installed in Methanol Injection Bung)
• (1) Mounting Bracket for Cold Side Charge Pipe
• (4) 4-Ply Silicone Coupler
• (8) 304 Stainless Steel Worm Clamp
• (2) Charge Pipe Adapters
