Product Description
Replacement hardware kit for our 2017+ Honda Civic Type-R Front Pipe. (May fit other manufacturers' 3" downpipes)

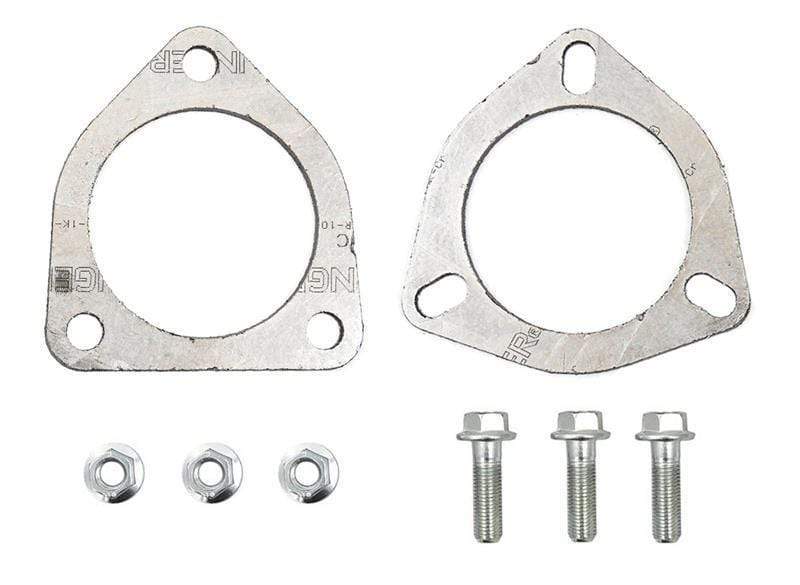

Hardware Kit Includes:
- (1) Downpipe Gasket
- (1) Front Pipe Gasket
- (3) M10 x 1.25mm x 35mm Flange Bolt
- (3) M10 x 1.25mm Flange Nut
Each gasket is stamped from KLINGER® GRAPHITE LAMINATE SLS, which offers excellent sealing properties for flanges throughout a wide variety of temperatures.
Material Specifications:
- KLINGER® Graphite Laminate SLS consists of expanded layers of graphite, wich are stuck to a 0.05mm thin smooth sheet metal foil made of 1.4401. The adhesive layer is applied via a precisely controlled process, wich makes it possible to keep the amount of adhesive below 1% of the amount of graphite in order to ensure uniform distribution of the adhesive.
- Especially suitable for weak flanges at high temperatures up to 450°C.
- The gasket material consists of expanded layers of graphite, wich are stuck to a 0.05mm thin smooth sheet metal foil made of 1.4401. The adhesive layer is applied via a precisely controlled process, wich makes it possible to keep the amount of adhesive below 1% of the amount of graphite in order to ensure uniform distribution of the adhesive.
- Excellent chemical resistance
- Excellent high temperature resistance
- Provides excellent adaptability to any sealing surface
- Seals irregular flanges
- Conforms easily
- Stable physical properties over the whole temperature range
