Description

 Detailed Description


Product Name A-RM+c
Item Number 270-52114
Authorized Number JQR60234102 K20Ct
JAN CODE 4944997253147
Application FL5 Civic Type R (Civic)
Body model: 6BA-FL5
Engine model: K20C
Year: R4.9~ (2022.9~)
Special Note
Remarks Body: titanium, tail: carbon.
*When using this product, the genuine exhaust electronic control valve cannot be used.
Genuine exhaust valve canceller is included.
Proximity exhaust noise was measured at 3500 rpm since the specified rotation speed was not reached.

Specification

    Type
    • Titanium + carbon model
    Tailtip Style f118 round slash (carbon W)
    Pipe Diameter f70.0-f60.5
    Fitting Parts • 080-37001 Plate Gasket×1 [Click here to order]
    • 080-37601 Plate Gasket×1 [Click here to order]
    •M10×20 Flange bolt/flange nut set×2
    •Slit clamp installation kit SLIT -HC70×2
    •ARM+c dedicated split bracket [L]×1
    •ARM+c dedicated split bracket [R]×1
    •M8 plate washer×4
    •M8 nut (S45C)×4
    •M8×25mm bolt (8T) ×4
    •M8 spring washer ×4
    •Valve canceller ×1
    •Special carbon tail pipe set ×2



    Number



    Standard (STD) FUJITSUBO
    Intermediate acceleration (40km/h?80km/h, 2nd gear) 3.5 seconds 3.4 seconds
    Peak Power 214kw(291.0ps)/6144rpm 218kw(296.5hp)/6465rpm
    Peak Torque 418.5Nm (42.7kg?m) / 3215rpm 420.4Nm (42.9kg-m)/3565rpm
    Weight 18.3kg 12.9kg
    Idling Exhaust Noise 65dB 71dB
    Close-range exhaust noise (4875 rpm) 83dB 89dB
    2000rpm Exhaust Noise 70dB 81dB
    3000rpm Exhaust Noise 76dB 78dB
    1000rpm to 3000rpm Exhaust Noise 86dB 91dB

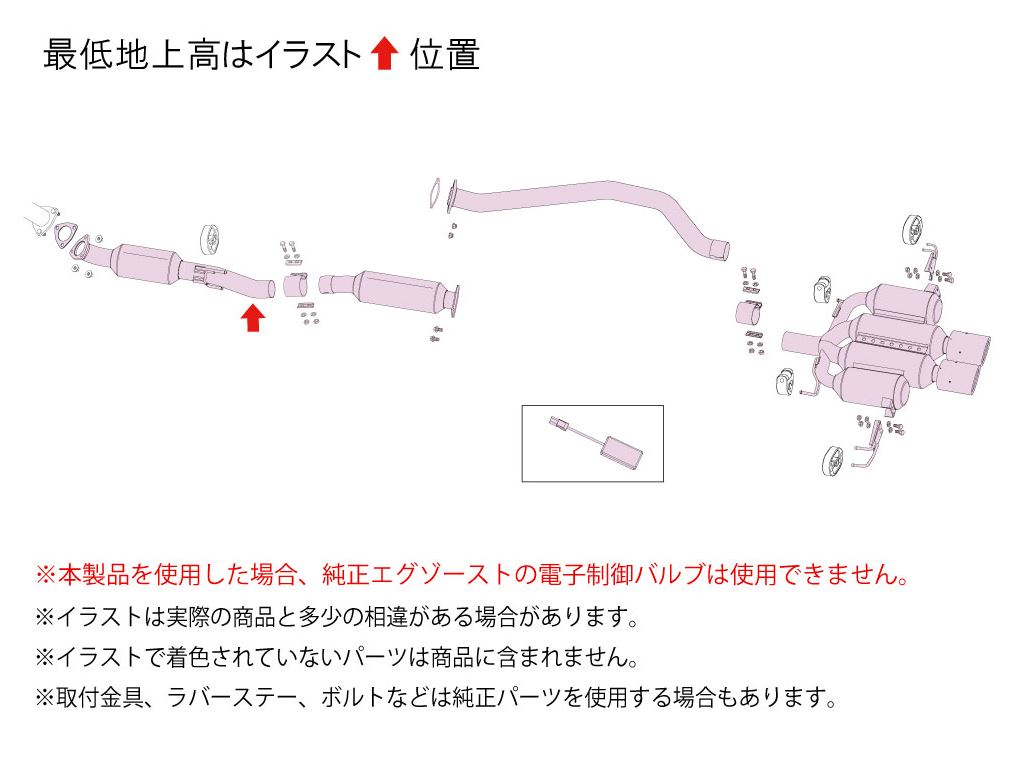

    Road Clearance



    Measurement vehicle 6BA-FL5
    Roof height 1410mm (vehicle inspection certificate 1400mm)
    Measurement area Intermediate Pipe
    Axle distance etc. 970mm behind the front axle
    Minimum ground clearance 144mm



    *In-house test values. Data may vary depending on the vehicle and conditions used
