HKS Honda Civic Type R FULL INTERCOOLER KIT FL5 Read reviews

Features:

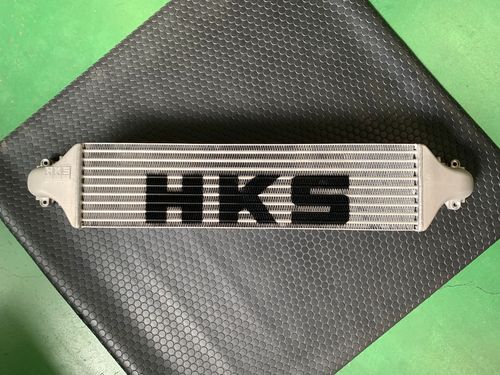

Intercooler Core

• A huge 22.4% in crease in core's area leads to immense improvement in cooling.
• The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
• The core is designed to be also installed with OEM piping.

Piping Kit

• Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
• The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss de to hose expansion.
• The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.

Important Notes:

1. To install the intercooler assembly, it is necessary to modify the air guide inside the bumper to relocate the outside air temp. sensor. No modification of the reinforcement is required.
2. To install the piping, it is necessary to shave the bracket on the vehicle body.

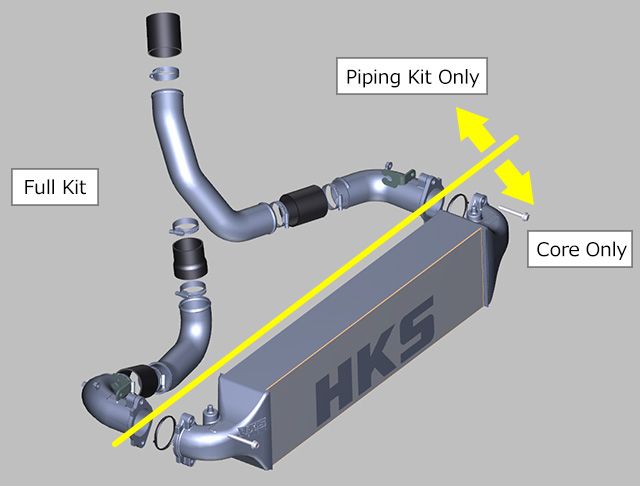

3. For the full kit, #1 and #2 must be handled.

Includes:

Piping Kit

• Aluminum bent pipe (IN/OUT)
• Cast Pipe (IN/OUT)
• Silicone Hose
• Hose Band
• Bracket (IN/OUT)
• Special bolts and nuts

Core Kit

• Intercooler core
• Masking sheet for logo spray
