2018+ Honda Accord 2.0T & 1.5T Intercooler Upgrade

Product Description

INSTALL LINK

Fitment Notes:

2018+ HONDA ACCORD 1.5T & 2.0T

Please Read Before Ordering:

DOES NOT REQUIRE TUNE

Technical Notes:

It’s no secret that Honda’s newer turbo platforms are extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs.

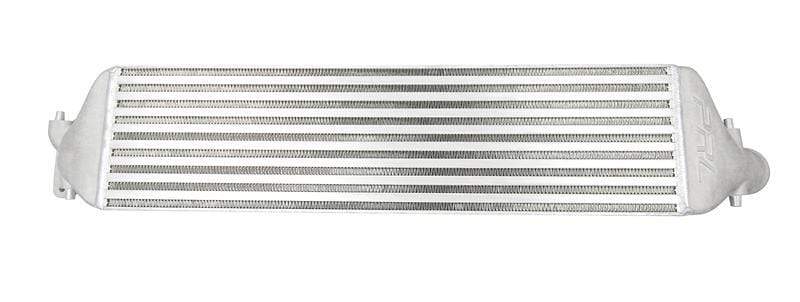

The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 27 x 3.5 x 7.25" 550+ horsepower rated bar-and-plate core. Our intercooler core which increases surface area by 85% and internal flow by 83% to allow optimal cooling and airflow.

This intercooler utilizes factory mounting spots with cast aluminum end tanks as well as all factory air ducts/shrouds. *To maintain consistency with most of our PRL product line, no cutting, fitting or trimming is required. Kits will come with all hardware needed for a seamless install.

Intercooler Core Information:

BLOG LINK

• (1) Intercooler Assembly
• (1) Cardboard Stencil w/ “PRL” Logo
• (1) Buna O-Ring
• (1) 304 Stainless Worm Clamp

Performance Gains:

• Mid-range & top-end power gains
• Major drop in post charge air temperature at peak
• Increased efficiency & consistency in power delivery
• Increased engine safety

Intercooler to Charge Pipe Bolt(s) Torque Spec:

• 18 ft/lb

If you plan to utilize the provided stencil to represent PRL on your intercooler:
- Clean and make sure your intercooler is dry.
- Place the cardboard stencil onto the front of the intercooler (Make sure the intercooler is not upside down, the PRL logo is on the driver's side end tank).
-I t is recommended to tape down the stencil to have a sharp logo and to avoid moving.
- Mask off or cover the end tanks to avoid overspray.
- Apply a high temp engine enamel style spray paint (we recommend Duplicolor DE1635 Ford SemiGloss Black, any color can be used).
- Multiple coats may be needed to have full coverage, this varies per color.
- Allow to dry 30-60 minutes before installing the intercooler.
-I f any mistakes are made such as runs/overspray acetone or paint thinner can be used to remove any unwanted paint or to remove the stencil entirely, though this will take some time.

- Keep the stencil handy and in a safe spot without bending if you would like to refresh your intercooler after years of road debris blasting it! (Stop blowing holes in my ship!)

Note: Please allow for an additional 1-2 weeks for powdercoated intercoolers to ship.*
